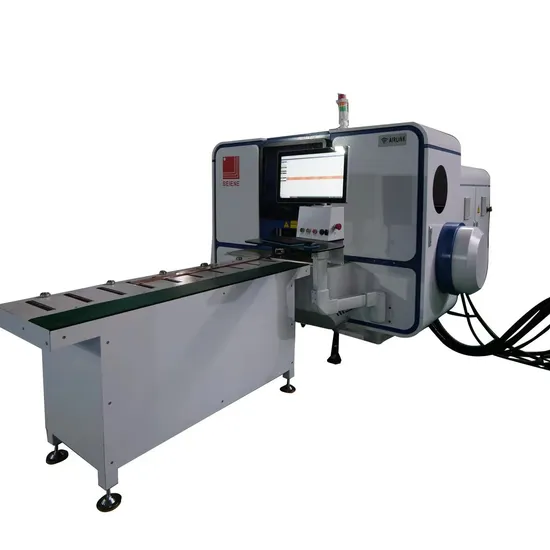

Intelligent 3D Busbar Shearing and Punching Machine with Windows Screen

Product Description

Advantages
1.German Smart Punch technology, faster and more economical
2.Intelligent 3D software can read 3D or 2D drawings directly
3.Intelligent bus optimization blanking and inventory management software
4.The whole machine is delivered without installation and commissioning.
5. Free video tutorials online
6. Intelligent remote diagnostics and services
7. Automatic feeding system (optional)
8. German In-line mould library (6/9/15)
9. Shear mode punching shear/single shear/saw cutting
Detailed photo
Specification

Description		Unit	EMAC-BP-40
Press Force	Punch Unit	KN	400
	Shear Unit	KN	400
X Max Speed		m/min	100
X Max Stroke		mm	1500
Y Max Speed		mm	100
Z Max Speed		mm	60
Minimum Oddment Length		mm	55
Max Hit Speed		HPM	150
Tool Kit	Punch Mold	set	5
	Shear Mold	set	1
Control Axis			3
Hole Pitch Accuracy		mm/m	±0.20
Max Hole Punch Size		mm	32
Max Busbar Size(W*H)		mm	6000*150*12
Total power		kw	15
Machine Size:L*W		mm	6600*2180
Machine Weight		kg	6300

Finished product photo
Package and Shipment


Certifications

Thumb up by Customer
Our service
--- Inquiry will be replied within 2 hours.
--- All the way tracking service offered from placing order to delivery.
--- We can provide professional guide installation.
--- One year warranty and all round after sale service.
--- Customized design and flow chart are available for our clients.
--- Independent R&D team and strict & scientific management system.

---
