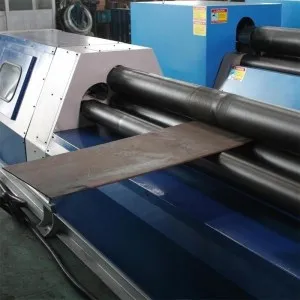

CNC Steel Sheet Roller Machine 3 Roller Plate Bending Rolling Machine

Product Description

Detail Images
Technical Parameter

Name	Max Rolling Thickness <450N/mm2	Max Rolling Thickness <700N/mm2	Max Rolling Width(mm)	Min Rolling Diameter(N/mm)	Yield Limit(N/mm2)	Rolling Speed(m/min)	Upper Roller Diameter(mm)	Lower Roller Diameter(mm)	Lower Roller Center Distance(mm)	Main Motor Power(Kw)	Length(mm)	Width(mm)	Height(mm)	Weight(Kg)
W11-4/1500	4	2.5	1500	187.5	245	5	150	140	200	4	3050	860	1070	1700
W11-4/2000	4	2.5	2000	200	245	5	160	150	220	4	3500	950	1200	2000
W11-6/1500	6	4	1500	200	245	5	160	150	220	4	3000	750	1200	2200
W11-6/2000	6	4	2000	212.5	245	5	170	160	220	5.5	3500	900	1150	2500
W11-6/2500	6	4	2500	225	245	4.5	180	170	250	5.5	4050	910	1150	2600
W11-8/1500	8	5	1500	212.5	245	5	170	160	220	5.5	300	900	1150	2400
W11-8/2000	8	5	2000	225	245	4.5	180	170	250	5.5	3500	850	1150	2500
W11-8/2500	8	5	2500	300	245	4.5	240	180	280	7.5	4350	950	1250	4000
W11-12/2000	12	8	2000	300	245	4.5	240	180	280	7.5	3900	1200	1350	3500
W11-12/2500	12	8	2500	325	245	4.5	260	220	320	11	4300	1285	1400	5300
W11-12/3000	12	8	3000	350	245	4	280	240	360	11	5100	1350	1350	7500
W11-16/2000	16	10.5	2000	325	245	4.5	260	220	320	11	3850	1250	1300	4800
W11-16/2500	16	10.5	2500	350	245	4	280	240	360	11	4500	1600	1450	6700
W11-16/3000	16	10.5	3000	425	245	4	340	270	440	15	5700	1600	1750	10300
W11-20/2000	20	13	2000	350	245	4	280	240	360	11	4000	1450	1450	6500
W11-20/2500	20	13	2500	425	245	4	340	270	440	15	4700	1530	1680	9300
W11-25/2000	25	16.5	2000	425	245	4	340	270	440	15	4300	1600	1650	8600
W11-25/2500	25	16.5	2500	462.5	245	4	370	280	480	22	5780	1650	1962	11000
W11-30/2000	30	20	2000	462.5	245	4	370	280	480	22	5280	1650	1962	10000
W11-30/2500	30	20	2500	525	245	4	420	360	550	30	5240	1750	2070	16000
W11-30/3000	30	20	3000	187.5	245	4	150	390	600	30	5700	1750	2300	18500
W11-40/2500	40	26.5	2500	625	245	4	500	400	600	37	5300	1900	2400	20000
