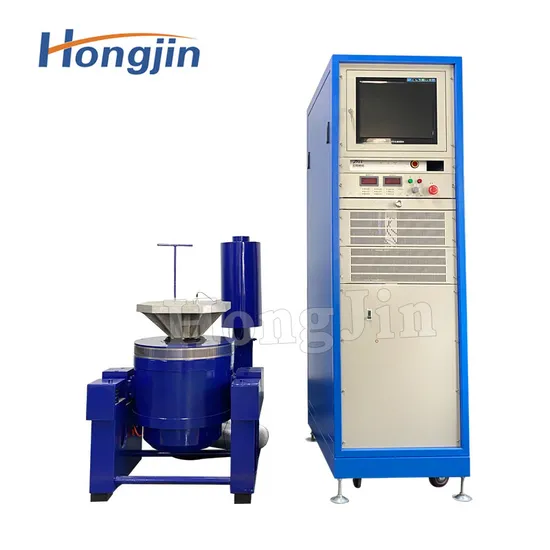

Vibration Tester Vibration Shaker/High Frequency Electromagnetic Vibration Test Machine

Product Description

Scope of application
High frequency vibration table, using "double magnetic circuit structure" self-generated skeleton moving ring "" air suspension support" linear bearing and roller guidance "" trunnion vibration isolation" and other modern advanced technology and special technology, can respectively complete the three-axis sine vibration test and broadband random vibration test, can complete the classic (half-sine, trapezoidal, post-peak serrate) pulse and shock response spectrum test. The climate tank can be configured to complete the multi-environment comprehensive test of mechanics and climate.
Product features
1. The well-designed moving coil skeleton has a high first-order axial resonance frequency.
2, double magnetic circuit, low magnetic leakage, compact and reasonable structure, rocker arm roller rod and imported linear bearing compound guide mechanism, guiding stiffness, strong off-load capacity.
3, trunnion vibration isolation does not need to use special foundation, easy to install and move.
4, advanced GIF winding process, to ensure the high reliability of the moving ring.
5, new air duct design, enhance the cooling effect. The bearing air bag with large static stiffness and small dynamic stiffness can improve the bearing capacity of the shaking table and improve the low frequency performance.
Product parameters

Model number	Rated sinusoidal thrust	Rated random thrust	Frequency range	Rated acceleration	Rated speed	Rated displacement	Maximum load	Equivalent weight of moving parts	Table size
HJS-1	1000	800	5-4500	400	1.2	25	70	2.5	Φ150
HJS-1.5	1500	1200	5-4500	600	1.2	25	70	2.5	Φ150
HJS-2	2000	1600	5-4000	800	1.6	25	70	2.5	Φ150
HJS-2a	2000	1600	2-3000	250	1.4	40	140	8	Φ230
HJS-3	3000	2400	5-4000	1000	16	25	120	3	Φ150
HJS-3a	3000	2100	2-3000	350	1.4	40	140	8.5	Φ230
HJS-6	6000	4800	5-3000	1000	1.6	25	200	6	Φ200
HJS-6a	6000	4200	2-3000	500	1.4	51	300	12	Φ230
HJS-10	10000	8000	5-3000	1000	1.8	51	150	10	Φ200
HJS-20	20000	18000	5-3000	1000	2	51	300	20	Φ320
HJS-30	30000	30000	5-3000	1000	1.8	51	500	30	Φ370
HJS-40	40000	40000	5-3000	900	1.8	51	800	44	Φ440
HJS-50	50000	50000	5-2800	1000	1.8	51	800	50	Φ440
HJS-60	60000	50000	5-2800	830	1.8	51	800	60	Φ440
HJS-100	100000	80000	5-2200	850	1.8	51	1000	110	Φ580
HJS-160	160000	130000	5-2000	850	1.6	51	1200	164	Φ600
