| US$250.00-450.00 | 1 Set (MOQ) |

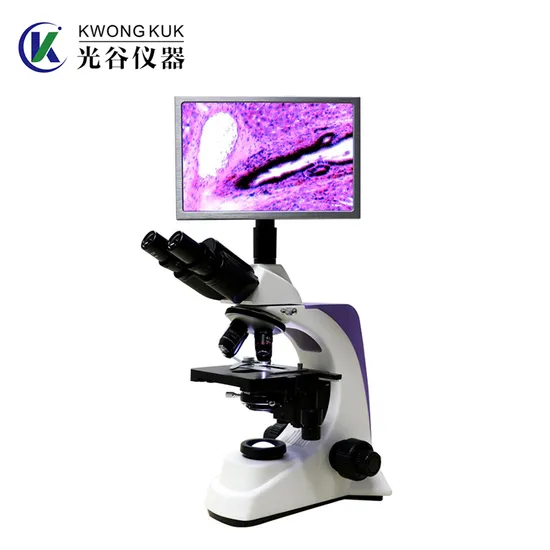

| Model | SGO-PH80 |
| Viewing Head | Infinity compensation trinocular head,interpupillary distance:55-75mm |
| Eyepiece | Wide field WF10X-18mm Wide field WF20X-11mm |
| Achromatic objective | DIN achromatic objective 4X/NA0.10 DIN achromatic objective 10X/NA0.25 DIN achromatic objective 40XR/NA0.65 DIN achromatic objective 100XR(oil)/NA1.25 |
| Nosepiece | 4 Holes revolving nosepiece, inward |
| Stage | Double layer mechanical stage, size:132mm*142mm |
| Focusing system | Coaxial coarse & fine focusing knob |
| Condenser | N1.25 Abbe condenser with iris diaphragm |
| Illumination | Halogen lamp 6V/20W AC85-230V |
| Package | Foam + carton,size:36.5*25.3*46.8cm |
| Optional accessories | |
| Name | Sort/Technique parameter |
| Camera | USB interface,5 megapixel or 10 megapixel,with function of photograph ,video etc,and export report forms ,measurement software, precision reach 0.001mu,Image matching function, Automatic point count function(recommend) |
| HDMI interface 1080P HD with function of photograph, memory, with HD displayer. | |
| VGA interface 2 megapixel analog signal output | |
