Lifting Table with Vertical Milling Head Knee Type Universal Milling Machine

Product Description

Product Description

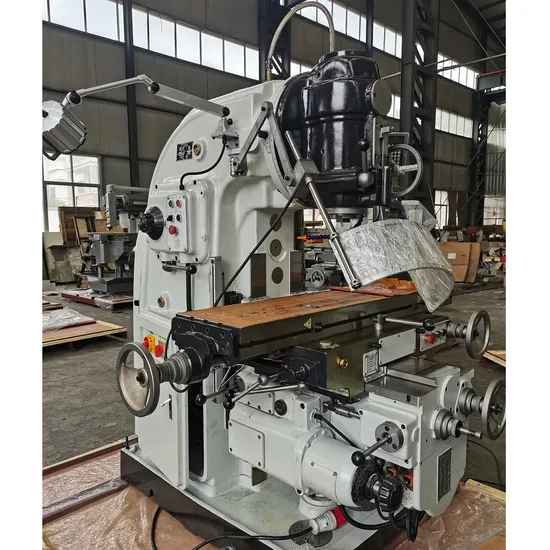

XLK5036 MILLING MACHINE
Detailed Photos
The machine can down milling and up milling.Table can rapid feed in cross, longitudinal, vertical directions, which can improve work efficiency.Cross and vertical feed of table is controlled by only one handle.Main drive parts and bearings are automatically lubricated by oil pump, an indicator is set to check the lubricant conveniently. Hand lubrications are set in obvious positions.
Main driving parts and spindle are mounted through rolling bearing, which can improve drive efficiency.Adjust the spindle bearing to make sure the precision of spindle.
Product Parameters

Specification	Unit	XL5036C	XL5036CL
Table size	mm	1325*360	1600*360
T-slots(NO./Width/Pitch)		3/18/80
Longitudinal travel	mm	1100	1300
Cross travel	mm	320
Vertical travel	mm	450
Table feed(X/Y/Z)	mm/min	30-750/20-500/15-375 8 steps
Table rapid speed(X/Y/Z)	mm/min	1200/800/600
Spindle taper		7:24 ISO50
Spindle speed range	r.p.m	50-1475
spindle speed step	steps	12 steps
Spindle travel	mm	70
Max.swivel angle of vertical milling head		±30°
Distance between spindle nose and table surface	mm	50-500
Distance between spindle axis and column guideway	mm	378
Torque of X/Y/Z axis AC servo motor	N.m	15
Main motor power	kw	5.5
Overall dimensions	mm	2245*2100*2150	2520*2100*2150
Net weight	kg	2900	3000

Certifications
Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong(Xili) Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
We are manufacturer not trading company.All our products passed CE, ISO9001. We also do OEM for Germany KNUTH, OPTIMUM, Austria Bernardo, America JET and so on. You can trust our quality and service.
Hope we can built long-term business relationship with you. Packaging & Shipping
Delivery time: generally 60 days production time after confirmation of order.
Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet).
Delivery type: 20GP container is enough to load.

Company Profile
The company is located in the famous hometown of Mozi, Tengzhou City, Shandong Province. The company covers an area of more than 100,000 square meters, construction area of 70,000 square meters, set up Shandong Yourong Machine tool Co., LTD., Shandong XILI Machine tool Co., LTD., the existing employees 360 people, annual sales of 500 million yuan. Through cooperation with European companies, the company absorbed advanced technology, leading products to form CNC gantry machining center series, vertical, horizontal machining center series, turning and milling compound, CNC boring machine, CNC milling machine series, lifting table milling machine series, gantry milling machine series, slide milling machine series, and other brand specifications. About 70 percent of the products are exported to Germany, Poland, Italy, France, Russia, the United States and other European and American international markets. The company is a member of China Machine Tool Industry Association, passed the ISO9001 international standard quality system certification in 2002 and obtained the independent export right, passed the CE certification in 2010, was rated as the "National high-tech Enterprise" in Shandong Province in 2013, passed the Russian EAC certification in 2015. In April 2018, the International Madrid trademark was successfully registered, and more than 140 patents were authorized by the State Intellectual Property Office.

Our Advantages
1.More than 20 years experience for indusry product.
2.All modles with CE,TUV,SGS,ISO9001/9002 and other authority approved.
3.Professional service and technology.
4.Excellent reputation all over the world.
5.Final exported producuts would pass strict test by international authority BIVAC.
6.There is more exporting experience for 20years with our owned manufacture company.

FAQ
Q1: What is your product name?
R1: XLK5036 MILLING MACHINE.
Q2: Where is your factory?
R2: Our factory is located in Tengzhou, Shandong Province.
Q3:How many milling machines can be produced per month?
R3: We can produce more than 20 units per month.
Q4: Can you provide samples?
R4:Yes, we can provide you with samples, but you need to pay for the samples and freight first.
Q5:Can you use our brand?
R5:Yes, we can make it to order.

Q6:How can I trust your company?
R6:XILI Machine Tool has more than 20 years milling machine production history. covers an area of about 50000 square meters,with 20 million CNY fixed assets and more than 300 employees.
Q7:What is the payment term?
R7: T/T, 30% advance payment before machine production, 70% balance payment before machine delivery.30% T/T advance payment, and 70% balance payment by Irrevocable LC at sight.

---
