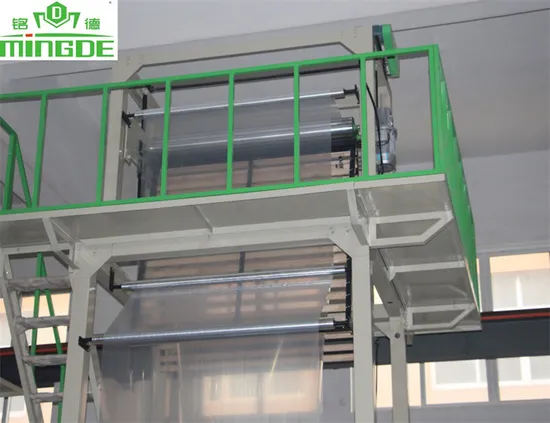

LDPE Film Blowing Machine Set Model MD-L75/1500 Blown Film Extruder Machine

Product Description

Mingde High Speed Automatic Plastic LDPE Blown Wide Film Extruder Blowing Machine
Ruian Mingde Machinery Co., Ltd. is a professional manufacture of plastic machinery company. Main products: one to three layer co-extrusion rotary die film blowing machine, P E single and double winder film blown machine, high speed biodegradable film blowing machine,printing machine and bag making machine air cooling heat cutting recycling machine.
We have the right of imports and exports, work on the quality of the first faith-based service of customer focus, production according to the customers requires, highly speak by customers, have sold to more than 50 countries. have many patents, Got Provincial Science and technology S E M S and National high-tech enterprise in 2018. Next five years we will focus on researching environmental high output low consume new products, standardizing the internal structure of enterprise, Enhance Visibility Mingde brand in the world. Known in the world, reliable by the customer. Mingde machinery are willing forward to cooperation with you making brilliant future.

Model	MD-L75	MD-L90	MD-L100
Suitable Material	LDPE HDPE LLDPE	LDPE LLDPE	LDPE LLDPE
Max Film Width(mm)	800-1500	1000-2000	1500-2500
Film Thickness(mm)	LD:0.015-0.15	LD:0.015-0.15	LD:0.015-0.15
Max Extrusion Output	150kg/hr	200kg/hr	280kg/hr
Gear Box	200	225	250
Screw Diameter(mm)	φ75	φ90	φ100
Screw's Material	38 CRMOALA	38 CRMOALA	38 CRMOALA
Barrel's Material	38 CRMOALA	38 CRMOALA	38 CRMOALA
Barrel's Cooling Fan	370W*3	550W*3	550W*4
Thermo Control (zone)	4	5	5
Driving Motor (kw)	45	55	75
Die Size (mm)	LD:φ350/400	LD:φ400/500	LD:φ500/600
Rotary Die Head	360° Continue Rotary
Thermo Control(zone)	3	4	4
Air Ring	1 pcs	1 pcs	1 pcs
Cooling Blower(kw)	5.5	7.5	11
Roller Width(mm)	φ165*1600	φ190*2100	φ220*2600
Take-UP Motor (kw)	1.5	2.2	2.2
Take-UP Speed(M/min)	5-60	5-60	5-50
Type of Winder	Surface Friction Double Winders
Roller Width (mm)	1600	2100	2600
Winding Motor(KW)	16N.M	1.5KW	2.2KW
Winding Speed(M/min)	5-60	5-60	5-60
Voltage	380V/50HZ/3PHASE	380V/50HZ/3PHASE	380V/50HZ/3PHASE
Cover Dimensins(m)	6.8*2.6*6.5	7.5*3.2*7.5	9.4.2*9

MD-L series High speed film blowing machine set
1. It is used to blowing LDPE, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material.
2. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.
3. The screw and barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.
Optional equipment
Double winder
Rotary die head
Auto loader
Double lip air ring
Air shaft
Corona treatment
Fast screen changer
Air compressor
All roller pneumatic type

---
