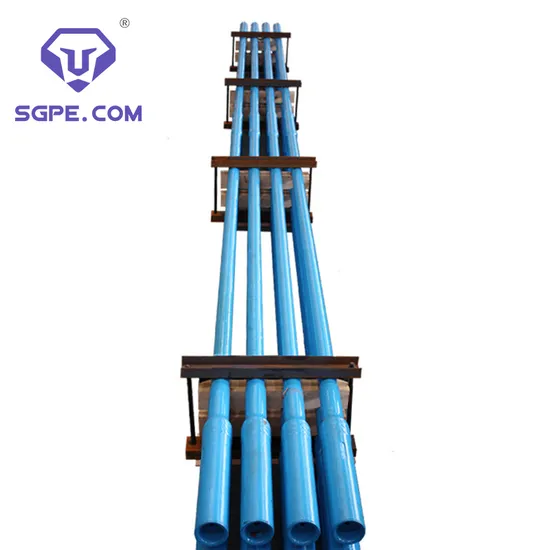

R1 R2 R3 Drill Pipe for Oil Industry Applications

Product Description

API 5DP Drill Pipe Seamless/Drilling Pipe
Discover our high-quality R1 R2 R3 Drill Pipe for Oil Industry Applications. Our durable and reliable drill pipe is designed for efficient and precise drilling in the oil industry. With corrosion-resistant properties, it ensures long-lasting performance. Choose from a range of options including Elt Integral Drill Pipe, Heavy Weight Drill Pipe, Nc38 Nc31 Drill Pipe, Doublewall Drill Pipe, Crooked Drill Pipe, and more. Trust GPE Oil Machinery Co., Ltd for all your drilling pipe needs.
API 5DP Drill Pipe - GPE Oil Machinery Co., Ltd
API 5DP Drill Pipe GPE Oil Machinery Co., Ltd offers high-quality API 5DP drill pipe seamless/drilling pipe that is designed to meet the reading habits of English-speaking natives. Our drill pipe complies with the provisions under the Standards API SPEC 5DP and API SPEC 7, ensuring superior performance and reliability.
Features:
Grade of steel determined according to the requirements of Group 1 and Group 3 of API SPEC 5DP
Group 1: Grade E
Group 3: Grade X-95, Grade -G-105, and Grade -S-135
Manufactured drill pipe joints provided at the same level
Compliance with the provisions under the Standard API SPEC 7
Benefits:
High-quality construction for enhanced durability
Meets industry standards for reliable performance
Flexible options to meet customer requirements
Ensures efficient drilling operations
Choose GPE Oil Machinery Co., Ltd for your API 5DP drill pipe needs. Contact us today for more information.
Welcome to consult, we will provide the most comprehensive technical support! Detailed information on API 5DP drill pipe seamless/drilling pipe from GPE Oil Machinery Co., Ltd. Our R1 R2 R3 Drill Pipe is designed for oil industry applications. It is a high-quality, durable, and reliable drill pipe that is corrosion-resistant and long-lasting. With API 5DP thread, it ensures efficient and precise drilling. Choose our drill pipe for efficient and reliable oil industry operations.

Size (in)	Nominal Weight (1b/ft)	OD of Pipe Body		Wall Thickness of Pipe Body		Conn. Type	OD of Pin and Box		ID of Pin
		(in)	(mm)	(in)	(mm)		(in)	(mm)	(in)	(mm)
2 3/8	6.65	2 3/8	60.32	0.28	7.11	NC26 (2 3/8 IF)	3 3/8	85.7	1 3/4	44.45
2 7/8	10.4	2 7/8	73.02	0.36	9.19	NC31 (2 7/8 IF)	4 1/8	104.8	2	50.8
3 1/2	13.3	3 1/2	88.9	0.37	9.35	NC38 (3 1/2 IF)	5	127	2 7/16	61.91
3 1/2	15.5	3 1/2	88.9	0.45	11.4	NC38 (3 1/2 IF)	5	127	2 1/8	53.98
4	14	4	101.6	0.33	8.38	NC46 (4 IF)	6	154.2	3 1/4	82.55
4 1/2	16.6	4 1/2	114.3	0.34	8.56	NC40 (4 IF)	6 1/4	158.8	3	76.2
5	19.5	5	127	0.36	9.19	NC50 (4 1/2 IF)	6 5/8	168.3	3 1/4	82.55
5	25.6	5	127	0.5	12.7	5 1/2 FH	7 1/4	184.2	3 1/4	82.55
5 1/2	21.9	5 1/2	139.7	0.36	9.17	5 1/2 FH	7 1/4	184.2	3 1/2	88.9
5 1/2	24.7	5 1/2	139.7	0.42	10.54	5 1/2 FH	7 1/4	184.2	3 1/2	88.9
6 5/8	25.2	6 5/8	168.28	0.33	8.38	6 5/8 FH	8 1/4	209.6	4 3/4	120.7
6 5/8	27.7	6 5/8	168.28	0.36	9.19	6 5/8 FH	8 1/4	209.6	4 3/4	120.7

---
