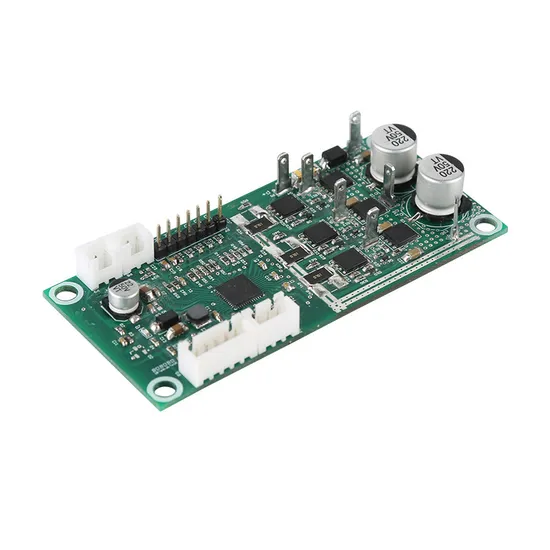

OEM Custom Printed Circuit Board Assembly (PCBA) High Quality Pure Sine Wave Inverter Green Sosolutions and Industrial Testing Equipment PCBA Design Solutions

Product Description

Company Profile 00:00 00:00 Overview Sichuan Yichuangxin Electronic Technology Co., Ltd. stands as a leading beacon in the realm of electronic technology, offering cutting-edge solutions that harmonize seamlessly with innovation and efficiency.
Our expertise seamlessly integrates product research, development, production, and sales, commanding an impressive footprint of approximately 6500 square meters. Our facility boasts state-of-the-art production workshops, modern office spaces, self-owned dormitories, along with a plethora of production and lifestyle amenities, including our own restaurant. We proudly house 2 dedicated factory buildings, 5 advanced high-speed SMT lines, 2 wave soldering plug-in lines, 2 high-efficiency three proof spraying lines, and 3 precision assembly lines. Our company has proudly earned 16 prestigious patent certificates along with high-tech enterprise qualifications, further endorsed by ISO 9001 quality management system certification and the esteemed GJB 9001C weapon equipment quality management system certification.
Our core business spectrum encompasses a diverse range including PCB circuit design and meticulous plate production, PCBA assembly featuring sophisticated techniques such asSMT mounting, DIP welding, and meticulous assembly testing). We also excel in micro assembly with expertise in RF and microwave components, three proof paint spraying, high-precision machining/sheet metal processing, and comprehensive electronic component procurement. We offer comprehensive one-stop production and delivery services, ensuring a seamless experience from conception to market delivery. Products Description Product Paramenters

PCB Item	Manufacture Capacity
Layer Counts	1--20L
Base Material	FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B)
Material Thickness(mm)	0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2
Max board size(mm)	1200x400mm
Board Outline Tolerance	±0.15mm
Board Thickness	0.4mm--3.2mm
Thickness Tolerance	±8%
Minimum line/space	0.1mm
Min Annular Ring	0.1mm
SMD Pitch	0.3mm
Holes
Min Hole Size(mechanical)	0.2mm
Min Hole Size(laser hole)	0.1mm
Hole Size Tol (+/-)	PTH:±0.075mm;NPTH: ±0.05mm
Hole Position Tol	±0.075mm
Plating
HASL/LF HAL	2.5um
Immersion Gold	Nickel 3-7um Au:1-5u''
Surface Finish	HAL,ENIG,Plated Gold,Immersion Gold,OSP
Copper Weight	0.5--6oz
Color
Solder mask	Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue
Silk screen	White, Black, Blue,Yellow
Acceptable File Format	Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000
Certificate	ISO9001

Manufacturing Technique Certifications Why Choose Us Core Competitiveness of the Company:
1. Unmatched Equipment Capability: Our state-of-the-art industrial equipment is both advanced and high-end, providing comprehensive solutions that set us apart in the industry.
2. Unrivaled Core Process Capability: Boasting a monthly production capacity of 500 product models, we excel in mounting high-end, precision SMT products, including 01005, 0201-LGA, BGA, QFN, SiP&POP technology, wafer mounting, and more.
3. Exceptional Quality Control: Our rigorous quality control systems include an MES system, error prevention material tracking, and material traceability, ensuring top-tier production standards.
4. Rapid Delivery: We pride ourselves on our ability to respond 24/7 to customer needs, offering flexible manufacturing processes and exceptional service quality to meet tight deadlines.
5. Advanced Talent Training: Nurturing highly skilled professionals is at the core of our operations, ensuring innovation and excellence.
6. Inspirational Corporate Culture: Our thriving corporate atmosphere fosters collaboration, innovation, and a commitment to excellence.
Leveraging our advantages in equipment, scale, channels, efficiency, and operating costs, we harness rich industry resources and vertical integration capabilities. Our expertise spans electronic product production, processing, and comprehensive support services for various sectors such as military, scientific research, academia, communications, industrial control, medical, automotive electronics, rail transit, aerospace, and new energy. Our prestigious clientele recognizes our commitment to quality and reliability, establishing long-term partnerships with us.

---
