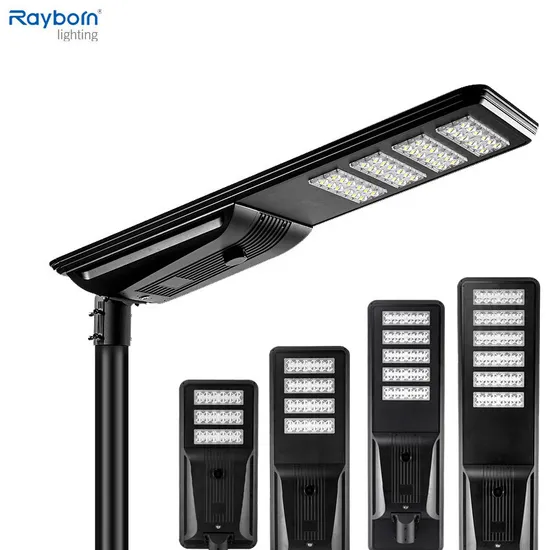

High Bright Solar Powered MPPT Motion Sensor Outdoor Road Integrated All in One LED Solar Street Light 30W/40W/60W/80W/100W/120W/200W up to 210lm/W

Product Description

New design All in one Led Street Solar Security Lights with Motion Sensors Energy Saving Best Price List Motion Sensor IP65 Integrate All In One Garden Outdoor Solar Street Light 20W/30W/40W/60W/80W/100W Factory direct sales New design 100W 200W 300W Outdoor integrated all in one solar led street light led yard light Integrated All In One Solar Led Street Light outdoor waterproof Time Light Control Led yard road lights

Model	RB-SOL-KH30W	RB-SOL-KH40W	RB-SOL-KH60W	RB-SOL-KH80W	RB-SOL-KH100W	RB-SOL-KH120W
Lamp body material	Die casting+profile aluminum	Die casting+profile aluminum	Die casting+profile aluminum	Die casting+profile aluminum	Die casting+profile aluminum	Die casting+profile aluminum
Power	30W	40W	60W	80W	100W	120W
Lens material	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate
Solar panel	18V/50W Mono	18V/60W Mono	18V/80W Mono	18V/105W Mono	18V/130W Mono	18V/150W Mono
Battery capacity(mah)	Lithium LifePO4 battery 3.2V 72AH(231WH)	Lithium LifePO4 battery 3.2V 100AH(320Wh)	Lithium LifePO4 battery 12.8V/30AH(384Wh)	Lithium LifePO4 battery 12.8V/45AH(576Wh)	Lithium LifePO4 battery 12.8V/60AH(768Wh)	Lithium LifePO4 battery 12.8V/75AH(960Wh)
LED chips	4 cores high efficiency smd 3030 96PCS	4 cores high efficiency smd 3030 144PCS	4 cores high efficiency smd 3030 192PCS	4 cores high efficiency smd 3030 240PCS	4 cores high efficiency smd 3030 280PCS	4 cores high efficiency smd 3030 336PCS
Efficacy	200LM/W
Solar panel conversion efficiency	23.80%
Light Luminous Flux	6050LM	8030LM	12000LM	16000LM	20000LM	24000LM
Controller	MPPT Controller
Beam angle	105*158° / transmittance: >95%
Cloud platform system management	Iot Control Management System (optional)
Lighting Method	Intelligent control +Microwave induction + segmented time control
Products size	408x773mm	408x878mm	408x1118mm	408x1388mm	408x1603mm	408x2008mm
Discharge time	3-5 rainly & cloudy days
IP Rank	IP65	IP65	IP65	IP65	IP65	IP65
Pole Diameter	81mm
Installation Height Recommended	5-6M	6-8M	8-10M	10-12M	12-15M	15-18M

Outdoor LED Solar Street light Features :
All in One Integrated Solar Street Light 40W-120W up to 24000LM
The radiator is 6063 aluminum, which is treated with thick an-corrosion spray paint.
Removable baery, more convenient for follow-up maintenance.
No addional wiring is required, which saves money; mulple mounng brackets can be pipe-mounted, arm-mounted, etc.
Direct light design, high light transmiance PC lens, light transmiance above 90%, high whole lamp lights effect.
Genuine imported chip lamp beads, high lights effect, low light decay,and high energy-saving effciency.
High thermal conducvity aluminum substrate and radiator, low tem-perature rise, good heat dissipaon of the whole lamp, and longer life span.
Assembly line operaon, large-scale producon, stable product perfor-mance, and more guaranteed quality.

Precautions: The installaon of solar street lights should be carried out in sunny days, Integrated solar street light because it cannot be quickly charged aer installaon in rainy days, and-discharge is carried out at night, which a?ects the use effect.
Before installaon, please select the direcon of the light source accord-ingto the road body and the posion of the
light source to meet the max-imumirradiation area of the road.
The angle of the baery board should be adjusted to the most suitable place.Generally, a 15 angle is recommended.
The installation location needs to avoid the shadow of obstacles such ashouses, trees,etc, which will reduce the power generation efficiency of thesolar panel and shorten its working me.
Detailed Photos
Outdoor Integrated All in One Solar Competitive Advantage :
1. CE & RoHS IP66 approved, Quality Guaranteed
2. Imported original Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 3-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan
Test Aging
Outdoor Solar LED Street light 24hours AGING Tested :
Before shipping, all the LED streetlights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-voltage test , waterproof test , ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.
Applications
Outdoor Solar LED Street light Applications:
1. Playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.

Rayborn Company viewing :
Rayborn Lighting Co.,Ltd is a professional manufacturer ,focus on Industrial LED lights and commerical LED lights research ,devolopment ,production,sales ,on service,was in High-end operation and service provider in High-power led .Under the country "saving "polics,we are striving to create environment protection ,energy saving ,long life lighting and earned a reputation of being a quality supplier of LED lighting .
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
Payment terms:
1. Payment: T/T, L/C at sight, Western Union ,Paypal available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port:Shenzhen , China
5. Discounts are offered based on order quantities
Rayborn services:
•1. Your inquiry related to our products or prices will be replied in 24hours.
•2. OEM & ODM are welcomed, OEM brand is available.
•3. Any defective products within warranty will get maintenance or replacement unconditionally.
•4. Protect your sales area
FAQ:
1. What is the general business process?
Answer : Send Inquiry to Rayborn. → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service
2. What is the warranty?
Answer : 3-5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.
3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance.
For bulk order, 30% deposit in advance by T/T, 70% balance before shipping.
For very big order, L/C is negotiable.
4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.
5. I don't know how many LED Street Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.
6. Do you have any MOQ limit for led light order?
Answer: Low MOQ, 1pc for sample checking is available .
7. How do you ship the goods and how long does it take to arrive?
Answer: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
8. How to proceed an order for led light?
Answer : Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
9: How to deal with the faulty?
Answer : Firstly, Our products are produced in strict quality control system and the defective rate < 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will send out new replacement to you immediately for you to solve the problem.

---
