China Uni-Tech Horizontal Knee-Type Universal Lmilling Machine Price

Product Description

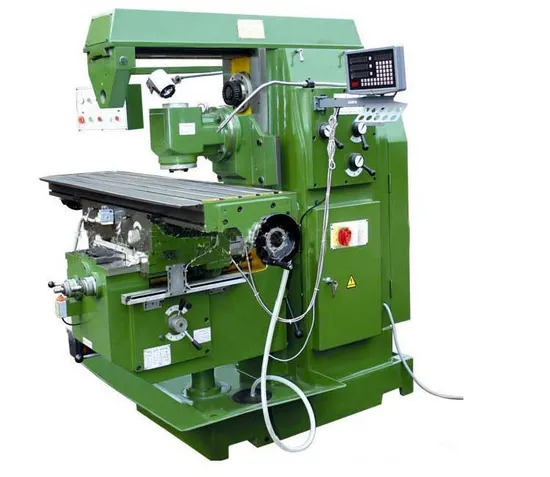

China UNI-TECH Horizontal Knee-Type universal lMilling Machine price
Production process of Universal knee-type milling machine (X6132):

specification	unit	X6132	X6132B		X6132H	X6132BH
Table size	mm	320X1325	320X1600		320X1325	320X1600
Max Longitudinal travel(manual/auto)	mm	700/680	900/880		700/680	900/880
Max transverse travel(manual/auto)	mm	255/240
Max vertical travel(manual/auto)	mm	320/300			410/390
Max rotary angle		±45°
Distance between spindle axis table	mm	30/350		30/440
Spindle speed step		18 steps
Spindle speed range		30-1500
Feed range of table travel	steps	18 steps
Main motor power	kw	7.5
Feed motor power	kw	1.5
Overall size (L x W x H)	mm	2294X1770X1610	2294X2050X1610		2294X1770X1790	2294X2050X1790
N.W/G.W	kg	2650/2950	2740/3040		2850/3150	2940/3240

Main features:
1 Swallow tail guide ways with high accuracy.
2. Hardened and ground table surface, guideways with longer life.
3. Automatic feeds on x,y axes, motorized lifting and lowering of table on z axis
4. Head spindle swivel angle +/-45 degrees;
5. with enforce lubricating on X,Y,Z-axis and guide way with less ware out for the machine
5.Knee part with 3 supporter for Heavy load on the worktable.
6. Table Longitudinal and cross auto-feed with interlock system to avoide the error operation.
7. Worktable can be rotary, by +-45°for more wide use of the cutting. By the rotary, with the dividing head accessory can realize spiral plane cutting .
8. Main transmission and feeding part are with gear-drive for heavy-cutting.
Horizontal milling machine standard accessories

ISO50 Cutter arbor Cutter arbor	φ40
Horizontal arbor assembly	Φ22
Horizontal arbor assembly	Φ27
Horizontal arbor assembly	Φ32
Oil gun
Drawbar	M24x720
Double-ended wrench	13x14
Double-ended wrench	27x30
Double-ended wrench	32x36
Inner hexagonal wrench	5
Inner hexagonal wrench	8
Inner hexagonal wrench	10

Horizontal milling machine optional accessories
3 axis DRO
rotary table
milling chuck
dividing head
spindle cover
table cover
clamping kits
if you are interested in horizontal milling machine pls contact us
TENGZHOU UNI-TECH CO.,LTD

---
