US$35,200.00-36,300.00
|
1 Set
(MOQ)
|
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Max. Swing Dia. Over Bed
400mm
Max. Swing Dia. Over Slide
300mm
Max. Turning Length
260mm
Spindle End Type
A2-5/A2-6
Spindle Max. Bar Through Dia.
44/51mm
Spindle Motor Powerthrough Dia.
11kw
Spindle Chuck Size
6′′*/8′′chuck
Repeat Positioning Accuracy(X/Z)
0.005mm
Tool Turret Type
12t Bmt40 Powered Tool Turret
Transport Package
Plywood Case/Steel Pallet
Specification
2180*1830*1710mm
Production Capacity
480 Unit/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description

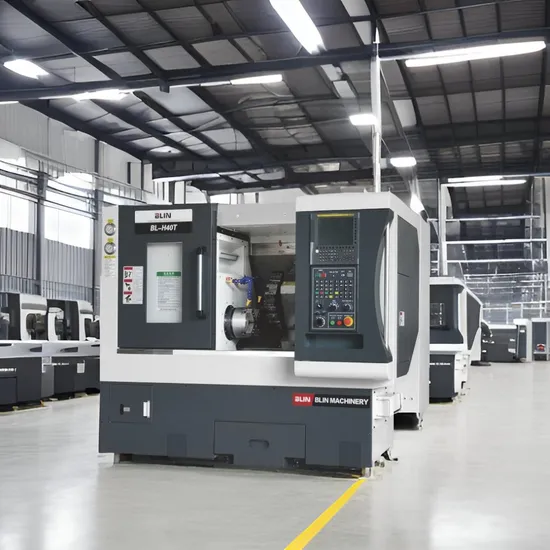

Slant bed cnc turning lathe center
- Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/TAIWAN brand
- Adopt 30°integral slant bed design
- Z axes adopt ROLLER type linear guideway,super high rigidity
- Adopt modularization design, easy for various especial configuration choice, such as tool setter etc
- Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
- Base adopt multilayer strengthening rib, ensure bed's strength and stability
- Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
- Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity
- H40T mount 8T hydraulic-servo tool turret
- H40TC mount C axes and 12T Powered tool turret
- H40TY mount C axes and 12T Powered tool turret with 90°Y axes
Details:
| Item | Specification | Unit | BL-H40T | BL-H40TC | BL-H40TY |
| Capacity | Chuck size | / | 6''(8''*) |
| Max. swing dia. over bed | mm | Φ400 |
| Max. swing dia. over saddle | mm | Φ300 |
| Max. turning length | mm | 300(6'' chuck);
290(8'' chuck*) | 260/240(BMT40,6''/8''* chuck);
250/235(VDI30*, 6''/8''* chuck) | 240 |
| Max. turning dia. | mm | Φ310 | Φ240(6'' chuck);
Φ320(8'' chuck*); | Φ225 |
| Standard turning dia. | mm | Φ150(6'' chuck);Φ200(8'' chuck*) |
| Spindle | Spindle bore | mm | Φ56(Φ66*) |
| Spindle end type | / | A2-5(A2-6*) |
| Spindle speed | rpm | 5000(4000*) |
| Max. bar through dia. | mm | 44(51*) |
| Spindle motor power | kw | 11 |
| X/Z axes | X/Y/Z axes linear guideway type | / | BALL type/BALL type/ROLLER type |
| X/Y/Z axes linear guideway width | mm | 30/30/30 |
| X/Y/Z axes ball screw O.D. | mm | Φ32 |
| X/Y/Z axes ball screw pitch | mm | 10 |
| X axes travel | mm | 180 | 180 | 110 |
| Y axes travel | mm | / | / | 70 |
| Z axes travel | mm | 320 | 280 | 250 |
| X/Z axes rapid moving speed | m/min | 30 |
| Y axes rapid moving speed | m/min | / | / | 8 |
| Tool turret | Tool turret type | / | 8T/12T* Hydraulic-servo
tool turret | 12T BMT40 Powered tool turret;
12T VDI30 Powered tool turret* | 12T BMT40 Powered tool turret with Y axes |
| Toolshank size | mm
| 25×25, Φ40(SAUTER 8T);
20*20,Φ25/32(SAUTER 12T*);
25×25, Φ32(GSA 8T*) | 20×20, Φ32 | 20×20, Φ32 |
| Live tool type | | / | ER20(BMT40);ER25(VDI 30) | ER20(BMT40) |
| Tailstock | Tailstock quill taper | / | MT4# |
| Tailstock quill dia./travel | mm | Φ70/70 |
| Accuracy | Positioning accuracy(X/Z) | mm | 0.008/1000 |
| Repeat positioning accuracy(X/Y/Z) | mm | ≤0.005 |
| Others | Overall size | mm | 2180×1830×1710 |
| N.W. | kg | 3100 | 3200 | 3300 |
Main parts list:
| Item | Brand |
| Spindle unit | CHIAN top brand synchronous servo electro-spindle/TAIWAN-ROYAL |
| Tool turret | TAIWAN-GSA/YULIN/SWIFT |
| Ball screw | TAIWAN-HIWIN C3 class |
| Ball screw bearing | GERMANY-FAG |
| Linear guideway | TAIWAN-HIWIN |
| Lubrication system | TAIWAN-ISHAN |
| Rotary oil cylinder&chuck | TAIWAN-AUTOGRIP |
| Hydraulic parts | TAIWAN/JAPAN |
| Heat exchanger | Joint-venture |
| Main electricity parts | FRANCE-SCHNEIDER |
Standard configuration: - SIEMENS 808D ADVANCED CNC controller
- Hydraulic chuck
- Hydraulic-servo tool turret
- Hydraulic tailstock
Optional configuration: - SYNTEC/SIEMENS 828D/FANUC CNC controller
- C axes& powered tool turret
- Y axes
- Automatic chip conveyor
-Tool setting probe
