US$0.25
5,000-9,999 Meters
Basic Info.
Conductor Material
Tinned Copper
Sheath Material
No Jacket
Material Shape
Round Wire
Range of Application
Flame Retardant
Certification
ISO9001, CCC, RoHS
Temperature
200 Centidegree
Feature
Aging Resistance, Fire Resistance
Application Field
Lighting, Automobile, Motor
Colour
White, Blue, Red, Black, Brown, Orange, Purple, Gr
Producing Experience
20 Years
Company Type
Manufacturer
Transport Package
PE and Carton
Production Capacity
200000meters/Day
Product Description

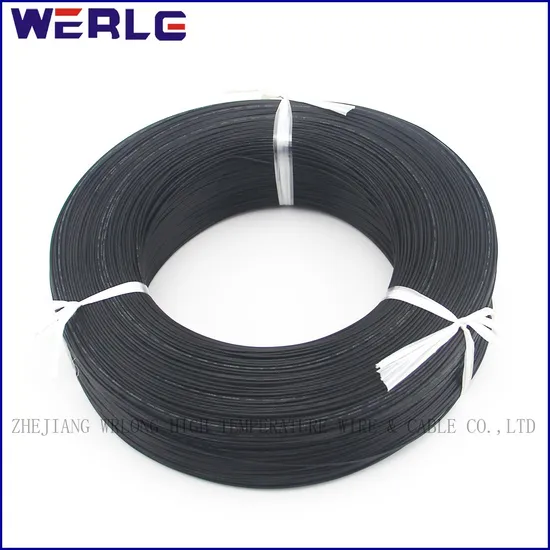

Product Description AF200-1 black 300V/500V FEP tinned copper high temperature resistant wire with Product certification
TECHNICAL DATE
Nominal Voltage:300V/500V
Temperature Range:-65ºC~+200ºC
Conductor:Tinned Copper
Insulator:FEP
O.D.Tolerance:±0.03mm
Testing Volta:2500V
Colour: white, blue, red, black, brown, orange, purple, gray, yellow, green, transparent, yellow-green, etc
CHARACTERISTIC
High temperature resistance, low temperature resistance, anti-acid, anti-oil, antisepsis and moistureproof.
APPLICATION
Apply to household appliance, illumination & lighting & headlamp, electric machines, temperature sensor, metallurgy chemical series, motor cars & ships electrical installation.
Product Parameters
| AF200-1 | Conductor | Over
Diamter
±0.03mm² | Insulator | Technical Data | Packing(m/roll) |
Size
mm² | material | Conductor
Construction
No./mm | Diameter
mm | Material | Average
Thickness
mm | Colour | Temperature Range(ºC) | Nominal voltage |
| 0.08 | tinned copper | 7/0.12 | 0.3667 | 0.65 | FEP | 0.142 | red,yellow,
blue,green,
black,white,
purple,brown,
orange,
yellow-green,
transparent | :-65ºC~+200ºC | 300V/
500V | 185/
500 |
| 0.12 | tinned copper | 7/0.15 | 0.4584 | 0.79 | FEP | 0.166 |
| 0.2 | tinned copper | 7/0.20 | 0.6112 | 0.97 | FEP | 0.179 |
| 0.3 | tinned copper | 19/0.14 | 0.7028 | 1.1 | FEP | 0.189 |
| 0.35 | tinned copper | 19/0.15 | 0.7552 | 1.15 | FEP | 0.197 |
| 0.5 | tinned copper | 19/0.18 | 0.9062 | 1.32 | FEP | 0.207 |
| 0.75 | tinned copper | 19/0.23 | 1.1579 | 1.59 | FEP | 0.216 |
| 1.0 | tinned copper | 19/0.25 | 1.2586 | 1.78 | FEP | 0.261 |
| 1.2 | tinned copper | 19/0.28 | 1.40967 | 1.88 | FEP | 0.235 |
| 1.5 | tinned copper | 19/0.32 | 1.611 | 2.08 | FEP | 0.234 |
| 2.0 | tinned copper | 19/0.37 | 1.8628 | 2.34 | FEP | 0.239 |
| 2.5 | tinned copper | 19/0.40 | 2.0138 | 2.55 | FEP | 0.268 |
| 3.0 | tinned copper | 19/0.45 | 2.266 | 2.81 | FEP | 0.272 |
| 4.0 | tinned copper | 37/0.37 | 2.5995 | 3.2 | FEP | 0.3 |
| 6.0 | tinned copper | 37/0.45 | 3.162 | 3.9 | FEP | 0.369 |
| 8.0 | tinned copper | 37/0.52 | 3.653 | 4.35 | FEP | 0.348 |
Detailed Photos
