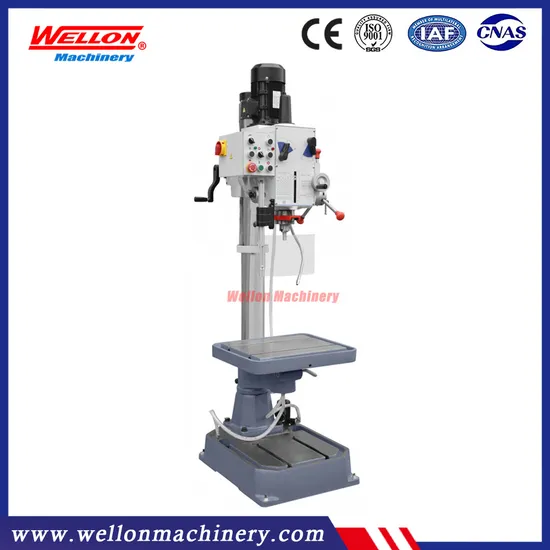

Vertical Drill Press Machine Z5032 Drilling Tapping Machine

Product Description

Product Description
Detailed Photos



Performence Features: Drilling, milling and tapping
Head swivels 360 degree horizontally
Headstock and Worktable up & down perpendicularly
Super high column
Precision micro feed
Positive spindle lock
Distinct auto device for releasing tools, operate easily
Geared drive, lower noise
Product Parameters

Technical parameter:

Model	Z5032
Max.drilling capacity	32mm
Spindle taper	M.T.3 or R8
Spindle travel	130mm
Step of spindle speed	6
Range of spindle speed 50Hz	80-1250 r.p.m
60Hz	95-1500 r.p.m
Distance from spindle axis to column	290mm
Distance from spindle nose to table	725mm
Distance from spindle nose to base	1125mm
Headstock travel	250mm
Swivel angle of headstock	360/ 90 degree
Worktable travel	600mm
Worktable size	380x300mm
Base size	417x416mm
Swivel angle of table	360 degree
Table tilt	+/-45 degree
Size of stand base	417x416mm
Motor Power	0.75KW(1HP)
Net weight/Gross weight	430kg/480kg
Packing size	1850x750x1000mm

Standard accessories:
Drill chuck
Taper sleeve
Wrench
Optional accessories:
Machine vice
Coolant system
Work lamp
Spindle guard
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,
Lathe Machines,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
