Cross Lapper Used for Cotton Comforter Production Line/ Hollow Micro Silk Fiber Cross Lapping Nonwoven for Fiber Mesh After Carding Cross Lapper Polyester Felt

Product Description

Application
To fold and pave the mesh after carding evenly into certain width and thickness, then transfer it to next procedure after pressurization.
The differential compensation of all paving aprons, reduction of the web drafting, triple drive and reciprocating is controlled by frequency inverter; And with floating device, the output screen lifting adjustment is easy and simple
Technical Data:

Feeding weight	5-80g/m2
output weight	20-4000g/m
feeding speed	65-120m/min
Feeding width	2.5m-13.2m
Output width	<= 3m/4m/5m/7m
Width of machine	1700-2700mm
Output apron width	2500-8800mm
Max linear velocity	50m/min(Adjustable)
Total power	5.2-10kw

Features:
1. To fold and pave the mesh after carding evenly into certain width and thickness, then transfer it to next procedure after pressurization.
2. The output layer has high uniformity, smooth surface, and the product has two edges neatly and trimmingly, and the product quality is stable.
3. The use of high-performance frequency conversion or servo drive, stable operation, fast response.
4. The use of anti-static high-strength carbon curtain, to avoid stress deformation of the cotton layer operation.
5. Adopt unique corrective control principle.
6. Using a data control system, the output uniformity can be fully compensated with actual process requirements.
7. input and output is controlled synchronously, to avoid breakage of the cotton layer stretch.
8. Adopt man-machine interface for parameter setting and input of process data.
9. abnormal fault alarm automatically
10. Output bottom curtain width is detected automatically

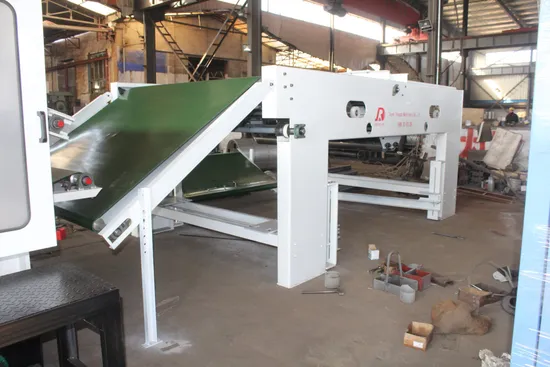

Detail machine pictures, all photoes are for 100% real shooting ! For more pictures, video and details, please email me!

---
