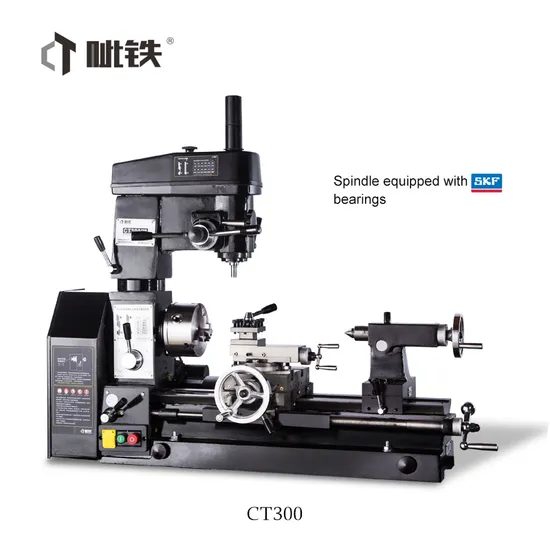

| Turning-parameters | |
| Max. swing over bed | 300mm |
| Max. swing over tool post | 140mm |
| Max.machining length | 500mm |
| Spindle taper | MT4 |
| Spindle bore | 26mm |
| Max. travel of tail-stock sleeve | 50mm |
| Taper of tail-stock | MT3 |
| Middle carriage travel | 200mm |
| Small carriage travel | 80mm |
| Threads metric pitches | 0.5~3mm/14kinds |
| Threads inch pitches | 11~40TPI/20kinds |
| Transverse feed | 0.05~0.5mm |
| Longitudinal feed | 0.05~0.5mm/2steps |
| Spindle speed range | 160~1600 r/min 6 steps |
| Motor power | 750w,50Hz |
| Drilling and milling-parameters | |
| Max.Drilling capacity | 20mm |
| Table size | 200x150mm |
| T-slots size | 12mm |
| Z spindle travel | 80mm |
| Spindle taper | MT3 |
| Spindle travel | 80mm |
| Distance from spindle to column guide rail | 175mm |
| Distance from spindle end to table surface | 240~320mm |
| Spindle speeds | 125~1600r/min 12 steps |
| Rotation angle of drilling and milling box head around the column | 360° |
| Net weight/Gross weight | 200/210kg |
| Overall dimensions | 1160x580x900mm |
| Package Size | 1130x570x910mm |
