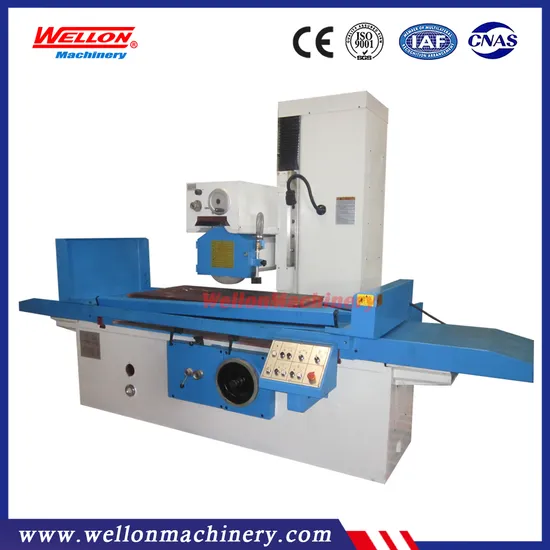

Surface Grinding Machine M7140Ax1600

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features:
This series of surface grinder is most suitable for the grinding steel, casting and non-ferrous parts of machine
manufacturing industry.
The accuracy of the machine has reached the National Standard for horizontal spindle & rectangular worktable
surface grinder.
The longitudinal movement of the worktable is driven by vane pump, which makes the movement smooth and
low noise.
The bearings of the wheel head spindle adopt bimetal shell bearing, which can afford heavy impact and make
the machine able to carry out heavy load grinding.
The cross movement of the wheel head can be driven by hand or by hydraulic oil automatically. It is easy to
operate. The vertical feed of the wheel head is driven by hand. It is also assembled with rapid elevating motor,
which can reduce the intention of work labor as well as enhance the work efficiency.
The machine moves smoothly and has reliable performance, low noise and stable accuracy. It is easy to operate
and deeply welcomed by the customers.
Technical parameter:

Model		Unit	M7140Ax1600
Worktable size		mm	400x1600
Max machining dimension		mm	400x1600
Distance from spindle center to table		mm	600
Longitudinal moving speed of worktable		m/min	3-25
T-slot number		Mm	3x18
Wheel head Cross moving	Continuous feed speed	m/min	0.5-4.5
	Intermittent feed speed	mm/t	3-30
	Hand wheel feed	mm/gra	0.02
Vertical Moving of wheel head	Rapid speed	mm/min	400
	Hand wheel feed	mm/.gra	0.005
Wheel Head motor	Power	kw	7.5
	Rotation speed	Rpm	1440
Total power		kw	13.5
Max loading capacity of worktable		kg	1000
Chuck size		mm	400x800x2
Wheel size		mm	400x40x127
Package dimension		cm	500x220x233
Machine Weight		t	6.51

Standard accessories:
Wheel Flange ,Balancing Arbor ,Wheel Exactor ,Coolant Tank ,Working Lamp
Tool Box and Tools ,Wheel dresser Stand not include diamond pen
Standard Grinding Wheel, Leveling Wedge and Bolt
Built in Electro Magnetic Chuck Controller
Optional accessories:
Standard Electro Magnetic Chuck
Wheel Flange
Balance Stand
Coolant Tank with magnetic separator
Coolant tank with paper filter
Coolant with magnetic separator and paper filter
Parallel wheel dresser
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
