Basic Info.
Battery
Lead-Acid Battery
Cargo Box Size(mm)
1600×1100×420
Product Description
Detailed Photos Product Parameters
| L×W×H(mm) | 3000×1180×1340 |
| Cargo Box size(mm) | 1600×1100×420 |
| Wheel base(mm) | 2050 |
| Wheel track(mm) | 950 |
| Minumum ground clearance(mm) | ≥150 |
| Minimum turning radius(m) | ≤4 |
| Curb weight(kg) | 185 |
| Rated load (kg) | 380 |
| Max speed(km/h) | 35 |
| Grade ability(%) | ≤15 |
| Battery | 48/60V45AH-58AH |
| Motor, Controller(w) | 48/60V 800Wpermanent magnet |
| Range per charging(km) | 50-70 |
| Charging time(h) | 6-8h |
| Front shock absorber | φ43 outer spring drum shock absorber |
| Rear shock absorber | 50×85 5 pieces leaf spring |
| Front/Rear tyre | 4.00-12/4.00-12 |
| Rim type | steel |
| Front/Rear brake type | One drag three drum brakes |
| Parking brake | Hand Brake |
| Rear axle structure | Integrated Rear Axle |

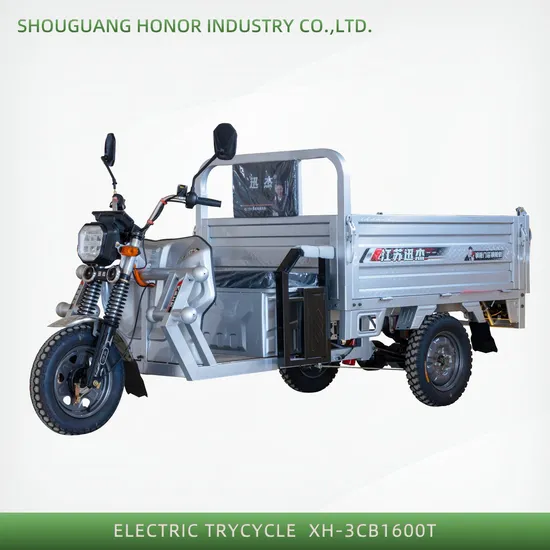

Product Description Introducing the new electric cargo tricycle, the ultimate solution for all your cargo transportation needs. With its unbeatable combination of affordability and performance, Warframe is the perfect choice for businesses and individuals alike.
The tricycle is designed to deliver maximum performance at a fraction of the cost of traditional cargo bikes. Its upgraded chassis increases the load capacity by 15%, making it ideal for carrying heavy loads. The advanced electric control system, powered by a permanent magnet motor, provides a 10% boost in power and a 15% increase in speed.
The front suspension has been upgraded with external springs to provide a smoother ride on rough roads.
The handbrake is conveniently located on the handlebar, making it easy to use and saving you time and effort. You can also choose from a range of optional accessories, including a windshield, canvas canopy, front storage box, and phone holder, all of which are easy to install with our step-by-step assembly video.
>>
