Product Details
Product Description
Product Description

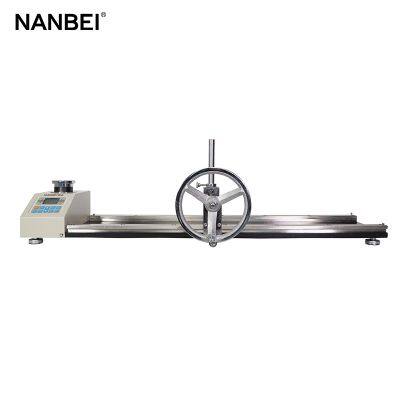

Digital Multi-range Torque Wrench Calibrator Tester
Usage and Application
ANJ torque wrench tester is a test torque wrench, torque screwdriver special equipment
Mainly used to detect a variety of fixed-type torque wrench, digital torque wrench, preset torque driver,
torque screwdriver, screwdriver and other equipment involved in tightening force and products.
Widely used in electrical manufacturing, machinery manufacturing, automotive light industry, professional research
and testing industry.
Feature
1. High precision, high resolution, sampling speed, full screen display.
2. The use of high-precision torque sensor, with torque direction display.
3. The upper and lower limits of the set, red and green light and the sound of light and light alarm.
4. The three units are converted to each other (N.m, kg.cm, Ib.in).
5. Real-time, peak, automatic peak three modes can be free to switch.
6. Using USB interface and PC communication, synchronization test function can be connected to computer testing,
computer synchronization display test curve and test the test process of detailed records, and do save, print and
other analysis.
7. Peak hold, auto release function, release time free setting.
8. Storage capacity, can save 1000 sets of test data.
9. No operation Automatic shutdown function, the time can be set freely.
Technical data
Model
| ANJ-30
| ANJ-50
| ANJ-100
| ANJ-200
| ANJ-300
| ANJ-500
| ANJ-1000
|
Measurement range / scale value
| N.m
| 30.000/0.001
| 50.000/0.001
| 100.00/0.01
| 200.00/0.01
| 300.00/0.01
| 500.00/0.01
| 1000.0/0.1
|
Kgf.cm
| 306.31/0.01
| 510.52/0.01
| 1021.0/0.1
| 2042.0/0.1
| 3063.1/0.1
| 5105.2/0.1
| 10210/1
|
lbf.in
| 265.86/0.01
| 443.11/0.01
| 886.2/0.1
| 1772.4/0.1
| 2658.6/0.1
| 4431.1/0.1
| 88622/1
|
Dimension
| 645mm×420mm×220mm
| 1050mm×540mm×300mm
| 1433mm×685mm×360mm
|
Check length range
| 150mm~450mm
| 150mm~870mm
| 150mm~1200mm
|
Width stroke
| 210mm
| 330mm
| 450mm
|
Height stroke
| 90mm
| 140mm
|
Accuracy
| ±1%
|
Peak sampling frequency
| 2000HZ
|
Power
| 7.2V 1.2V×6 Ni-MH rechargeable battery pack
|
Charging time
| 4~6h
|
Battery continuous use of time
| About 10 hour
|
Battery
| ≥300 time
|
Power Adapter
| Input AC220V50HZ output:DC10V300mA
|
Net weight
| 30kg
| 55kg
| 110kg
|
>>
