Remote Control Electric Telescopic Crane 10t 12t Small Crawler Crane 1 Ton 3 Ton 5 Ton Mini Spider Crane

Product Description

Product Description

Model		HW5Ton
Specification		5Ton
Maximum Working Radius		8.83m×0.25t
Maximum above-ground head		9.9m×1t
Maximum underground head		10m×1t(4rope) 20m×1t(2rope) 40m×0.74t(1rope)
Winch Device	Hook Speed	0-8m/min(4 rope)
	Rope diameter	φ8×45m
Telescopic system	Boom Type	5 section boom, Pentagonal structure, two sections can be extended independently
Up and down	Boom Angle/Time	0°~75°/13sec
Slew System	Boom Angle/Time	0°-360°(Continuous)/3rpm
Outrigger	Outrigger Active Form	Manual spin out + oil pressure automatic support (two section outrigger)
	Maximum Extended Dimensions	4530×4370×3700mm
Traction system	Walking Way	Hydraulic motor drives,two speed
	Walking Speed	0~2.5km/h
	Traction device	Synthetic rubber
	Grade Ability	(20°)36%
Operating system	Operation type (Boom/outrigger)	Manual operation, manual walking
	Operating characteristics	Manual operation,remote control
Transport parameters	L×W×H	2950×980×1560(mm)
	Total weight	5000kg

Advantages of Our Spider Crane
Synthetic Rubber Tracks
Durable and flexible, allowing movement on flat, solid surfaces with a wide range of trail options. Hydraulic Outriggers
Compact and versatile, the outrigger system adapts to various angles and configurations, saving space while ensuring stability. Moment Limiter
Real-time load monitoring with safe load indicators displays operating status, weight, boom length, and angle; an automatic alarm activates if capacity is exceeded. Remote Control Operation

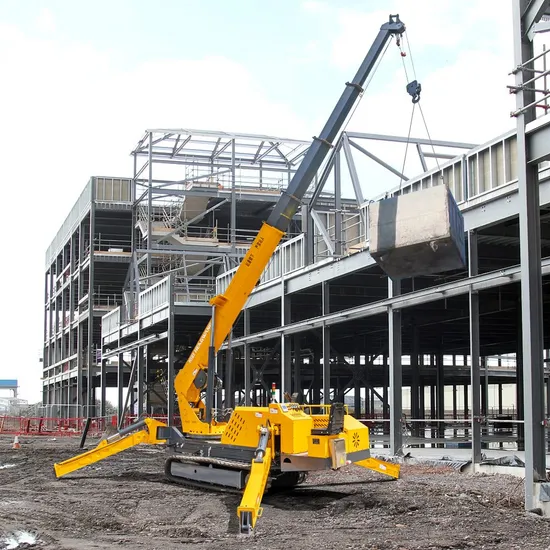

Allows safe, efficient control from a distance, keeping operators protected in challenging environments. Detailed Photos Due to their versatility and maneuverability, spider lifts are popular in a variety of industries including construction, maintenance, and facility management. They are particularly useful for tasks that require reaching high and awkward positions, such as installing or repairing building facades, lighting systems, and other overhead structures.
Spider lifts are equipped with outriggers or stabilizers that provide a solid base while the machine is in operation. They often have non-marking tires or tracks that allow them to be used indoors without damaging floors. The compact design makes them ideal for use in construction sites, industrial facilities, and even inside buildings where space is limited.
