Automatic Double Shaft Shredder for Waste Tires/Soild Waste/Plastic/Wood

Product Description

Automatic Double Shaft Shredder for Waste Tires/Soild Waste/Plastic/Wood
Product Description
1. Thick and heavy knife, crushing efficiency, fixed knife and rotating knife are made of alloy steel casting, it's solid and long service life.
2. Thick iron frame plate can be resistant to high torque, very strong.
3. Easy to be adjusted, low maintenance costs, economic and durable, the device low speed, high torque, low noise and so on.
4. Using microcomputer (PLC) automatic control, set start, stop, reverse and overload automatic reverse control.
5. The unit capacity is the theoretical calculation output, prefer to practice, as it's maybe various because of the actual density and shape of broken objects.
It is suitable for shredding large, thick and hard materials, such as automobile shell, solid industrial waste, medical trash, electronic trash, plastic bucket, plastic box, plastic bottle, metal can, metal barrel, woven bag, Refrigerators, circuit boards and cartons and other materials
Application
Applicable Material:
1.Plastic(Plastic drums, Barrels, Bottles, Tanks, Baskets)
2.Plastic sheets
3.Electronic waste
4.Metals(lead, aluminum, copper, cable, barrels, sheet scrap, sheet metal pieces left over from production processes)
5.Wood(wooden pallets or fruit boxes)
6.Waste tire, rubber
7.Waste household appliances
8.Paper waste (cardboard, newspaper, office paper, books, magazine, kraft paper, paper core, cardboard tube, paper packaging material)
Technical parameters

No.	item	Description
1	Model	XD600
2	Suitable material	Carton box, electronic trash, plastic bucket and boar, and metail can, metail barel, woven bag, plastic bottles etc.
3	Feeding mouth	600*480 mm
5	Diameter of knife	285 mm
6	speed	15-23 rpm
7	Material of knife	Cr12MoV
8	Thickness of knife	30mm
9	Hardness of knife	HRC50-55 (adjust according to customer shredding material)
10	Quantity of rotating knife	20 PCS
11	Plate thickness of machine	30 mm
12	Material of steel plate	Q345B
13	Material of Frame base	Q235B
14	Main motor power	7.5kw+7.5kw (380V 50Hz 3Ph)
15	capacity	300-500 kg /hr
16	Net weight of machine	2000kg
Electrical details
17	Protection program of motor		TP44
18	Motor		China famous brand Redsun
19	Noise class		<75 DB
20	Gearbox		China famous brand Redsun
21	bearing		China famous brand bearing
22	PLC		famous brand Wuxi Xinjie PLC
23	Other electrical appliance		Schneider

Remarks: all information above is only for reference; please gather the exact data by contacting us. Picture For Reference

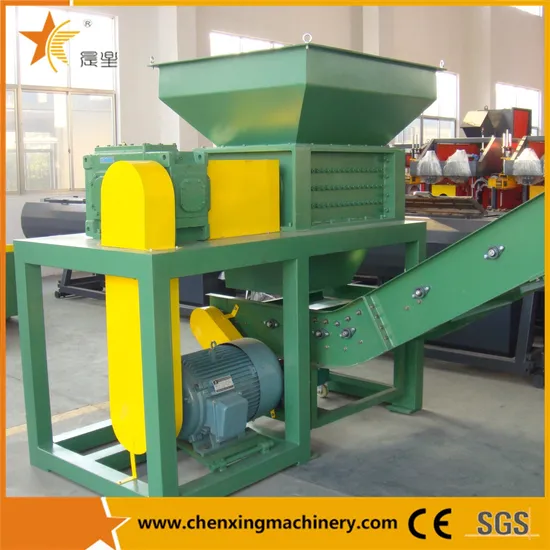

1.Machine Display:
2.Final Product Display:
3.Factory Display:
4.Other Hot Sale Product Display:

Company Profile
Zhangjiagang City Chenxing Machinery Ltd. CO. was established in 2002, its predecessor is Zhangjiagang City Samsung Machinery Plastic Factory, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one.
The main products include: pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and all kinds of auxiliary machines necessary in the process of plastic production, such as loading machines, mixers, formulators, grinding machines, mould temperature machines, chillers, etc.
We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company.
Chenxing is willing to work with you to create a future together.

FAQ
Our service:
1.Ability to provide the customized plastic extrusion solutions;
2.Complete sales system covering the pre-sales, sales and after service jobs;
3.Commissioning & installation service in customer plant
4.We can send you the video of the running machine. You are welcome to come to visit our factory,and see the machine running.
5.We can design the machines according your requirements(materil,power,color),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
FAQ:
Q: Your company is a trading company or an industrial manufacture factory?
A: We are an industrial manufacture factory. We have independent technical team who focus on making machines, all the products are made by our technical team.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.Q: What kind of certification do you have?A:Our products have obtained ISO9001 and CE certification,the quality can be guaranteed.We focus on the field of machine,and aim to be the best manufacturer of this field.Q. After-sales service
A: Send engineers to install, test the machines and offer technology guidance and worker training at customers' factory.
Q:What is the voltage?
A: 380V 50hz 3 phase or any other voltage according to client's requirement.
Questions for Buyers
Please offer the following information,so we can give you price and our advice as manufacturer:
1.The capacity per hour.
2.Crush film,bottle or large scrap plastic
3.The voltage.
CONTACT US:If you need to know more information about our company or our product,welcome to contact us and visit our factory!
Our company hope to cooperate with you to create a better future! ! !

---
