CNG Compressed Natural Gas Steel Cylinders for Vehicle

Product Description

Product Description Glass Fiber Composite CNG Cylinders

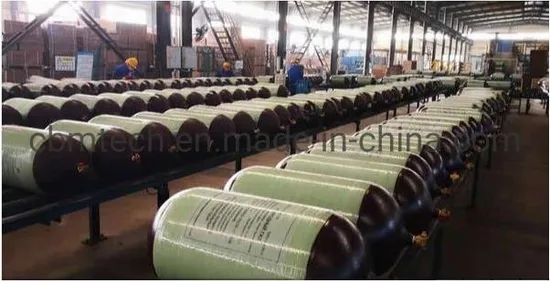

Glass Fiber Hoop Wrapped CNG Cylinder is mainly a glass fiber hoop wrapped steel inner cylinder, which is applied to the field of vehicle-mounted compressed natural gas. The fiber carries a ring-to-partial stress.CNG Cylinder's filling medium is compressed natural gas, which is widely used in cars, buses and trucks. It is safe, environmentally friendly and energy-saving. The main models of the product include: Φ219, Φ232, Φ279, Φ300, Φ325, Φ356, Φ406, etc.
Composite CNG Cylinders Specifications:

Type	Outside Diameter (mm)	Water Capacity (L)	Working Pressure (Bar)	Test Pressure (Bar)	Design Wall Thickness (mm)	Material
HCNG-325-55-20A	325	55	200	300	5	30CrMo with glass fiber&epoxy
HCNG-325-60-20A	325	60	200	300	5	30CrMo with glass fiber&epoxy
HCNG-356-70-20A	356	70	200	300	5.5	30CrMo with glass fiber&epoxy
HCNG-356-80-20A	356	80	200	300	5.5	30CrMo with glass fiber&epoxy
HCNG-406-90-20A	406	90	200	300	6.2	30CrMo with glass fiber&epoxy
HCNG-406-100-20A	406	100	200	300	6.2	30CrMo with glass fiber&epoxy
HCNG-406-110-20A	406	110	200	300	6.2	30CrMo with glass fiber&epoxy
HCNG-406-120-20A	406	120	200	300	6.2	30CrMo with glass fiber&epoxy
HCNG-406-130-20A	406	130	200	300	6.2	30CrMo with glass fiber&epoxy
HCNG-406-145-20A	406	145	200	300	6.2	30CrMo with glass fiber&epoxy

In addition to composite CNG cylinders, we also produce other types of gas cylinders.These cylinders are used to fill with permanent gases, liquefied petroleum gas or compressed natural gas to serve a wide application in chemical industry, metallurgical industry, mechanical industry, petroleum industries, electronic industry, building industry and in the fields of fire fighting, energy, food process, household, medical treatment, cryogenic soldering, mountaineering, diving, mining,scientific research & etc.
*More Descriptions of Medical Aluminum Cylinders:
-1) water capacity: 0.28L, 0.7L, 1L, 1.7L, 2L, 2.5L, 2.7L, 3.2L, 4L, 6L, 8L, 10L, 15L, 20L, 40L, 50L and etc;
-2) diameter: 59-232mm;
-3) height: 194-725mm;
-4) weight: 0.4-36kgs;
-5) service pressure: 15MPa, 20MPa
-6) related valve for choice.
Our Aluminum alloy gas cylinders can be refilled with rare, high pure, calibration and special gases. They are made of superior quality aluminum alloy and manufactured through the procedures of punching, drawing, heat treatment, CNC flow forming spinning, anodic oxidation treatment to the inner surface, etc. It is used to be filled and refilled with various kinds of gases, such as rare gases, high purity gases, standard gases, special gases, with a wide range of applications in the chemical industry, electronic industry, medical treatment, gas and coal mining fields, which is the ideal substitute for the steel cylinder. We also have the ability to design and produce the seamless aluminum alloy cylinders with special specifications and technical requirements.
BTW, high pressure seamless aluminium air cylinders are adopted to fill various compressed gas, including industrial specialty gases, pure gases, gas mixtures and air. (Such as Argon, Chlorine, Ethane, Helium, Hydrogen, Neon, Nitrogen, Oxygen, Nitrogen monoxide, Nitrous oxide and etc).

No	Specification	Outer Diameter	Water Volume	Length	Weight	Working pressure
1	LW-60-0.5-20-H	60mm	0.5L	285mm	0.59kg	200bar
2	LW-75-0.7-15-H	75mm	0.7L	295mm	0.85kg	150bar
3	LW-82-0.7-15-H	82mm	0.7L	235mm	0.9kg	150bar
4	LW-89-1.0-15-H	89mm	1.0L	269mm	1.2kg	150bar
5	LW-89-1.4-15-H	89mm	1.4L	345mm	1.4kg	150bar
6	LW-108-1.0-15-H	108mm	1.0L	210mm	1.3kg	150bar
7	LW-108-1.4-15-H	108mm	1.4L	264mm	1.6kg	150bar
8	LW-108-2.0-15-H	108mm	2.0L	346mm	2.1kg	150bar
9	LW-108-2.5-15-H	108mm	2.5L	413mm	2.5kg	150bar
10	LW-120-2.0-15-H	120mm	2.0L	320mm	2.7kg	150bar
11	LW-120-2.5-15-H	120mm	2.5L	369mm	3.0kg	150bar
12	LW-120-2.8-15-H	120mm	2.8L	398mm	3.2kg	150bar
13	LW-120-3.2-15-H	120mm	3.2L	437mm	3.5kg	150bar
14	LW-140-4.0-15-H	140mm	4.0L	420mm	4.2kg	150bar
15	LW-140-5.0-15-H	140mm	5.0L	500mm	4.9kg	150bar
16	LW140-6.0-15-H	140mm	6.0L	580mm	5.6kg	150bar
17	LW140-8.0-15-H	140mm	8.0L	741mm	7.2kg	150bar
18	LW140-5.0-20-H	140mm	5.0L	525mm	6.3kg	200bar
19	LW140-6.0-20-H	140mm	6.0L	652mm	7.98kg	200bar
20	LW-159-10.0-15-H	159mm	10.0L	730mm	8.8kg	150bar
21	LW-184-9.0-20-H	184mm	9.0L	575mm	12.0kg	200bar
22	LW-184-10-20-H	184mm	10.0L	620mm	12.9kg	200bar
23	LW-184-11-20-H	184mm	11.0L	665mm	14.2kg	200bar
24	LW-184-12-20-H	184mm	12.0L	710mm	15.4kg	200bar
25	LW-203-12-15-H	203mm	12.0L	567mm	11.8kg	150bar
26	LW-203-20-15-H	203mm	20.0L	873mm	17kg	150bar
27	LW-203-21.3-15-H	203mm	21.3L	962mm	19.9kg	150bar
28	LW-204-12-20-H	204mm	12.0L	610mm	16.5kg	200bar
29	LW-204-15-20-H	204mm	15.0L	735mm	18.7kg	200bar
30	LW-204-20-20-H	204mm	20.0L	940mm	23.4kg	200bar
31	LW-232-29.5-15-H	232mm	29.5L	994mm	30.2kg	150bar
32	LW-232-30.0-15-H	232mm	30.0L	1010mm	30.5kg	150bar
33	LW-232-33.4-15-H	232mm	33.4L	1126mm	31.3kg	150bar
34	LW-232-40.0-15-H	232mm	40.0L	1340mm	36.5kg	150bar
35	LW-232-20.0-20-H	232mm	20.0L	750mm	26.9kg	200bar
36	LW-232-26.0-20-H	232mm	26.0L	921mm	30.7kg	200bar
37	LW-232-30.0-20-H	232mm	30.0L	1076mm	36.4kg	200bar
38	LW-232-31.5-20-H	232mm	31.5L	1096mm	38kg	200bar
39	LW-232-40.0-20-H	232mm	40.0L	1365mm	44.1kg	200bar
40	LW-250-40.0-15-H	250mm	40.0L	1150mm	36.7kg	150bar
41	LW-250-46.4-15-H	250mm	46.4L	1305mm	38.7kg	150bar
42	LW-250-47.5-15-H	250mm	47.5L	1340mm	42.0kg	150bar
43	LW-250-50.0-15-H	250mm	50.0L	1590mm	39kg	200bar
44	LW-250-40.0-20-H	250mm	40.0L	1227mm	46.3kg	200bar
45	LW-250-50.0-20-H	250mm	50.0L	1500mm	56kg	200bar

*About Us:
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Carts/Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
*Advantages We Have: -1).Original Manuacturer: Being a professional manufacturer, we have professional equipments for our manufactureing products, including Punch Machines, CNC Machines, and etc.;-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of factory;-4)Cost Advantages: We have cost advantage because our professional and scale economy;-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50PCS;-7)Exporting experience: We have over 5 years' experience for exporting.*NOTES: -a). Various types of seamless steel/aluminum gas cylinders,cylinder valves & flowmeter regulators can be optional; -b).We have many advantages of satisfying our potential customers' MIXED needs of different sizes of HP steel gas(O2/Helium/Argon/CO2/N2) cylinders raning from 0.2L~68L @15Mpa/20Mpa & ISO3807-1/2 Dissolved Acetylene Cylinders(2L~60L),as well as cylinder regulators & cylinder carts.
Anyway,should you have any intersts or some more info needed on our cylinder carts, medical/industrial gas cylinders & allied gas items(gas cylinder valves,gas cylinder regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime
Key Contact: Ethan Liu (Exp. Mgr)
URL: http://cbmtech.en.made-in-china.com ; http://cbmtech.en.made-in-china.com

---
