High-Speed Network Card for Industrial Use

Product Description

MSS-APOE4 Specifications: Shanghai Mss International Trade Co., Ltd. presents the High-Speed Network Card for Industrial Use. This industrial network card offers reliable and efficient connectivity for your industrial applications. With its advanced features and 4-port design, it ensures high-speed and stable Ethernet connections. Perfect for use with microscopes and other industrial equipment, this network card is a valuable addition to your setup. Experience seamless performance and enhanced productivity with the MSS-APOE4.
Product Description The single-port Power over Ethernet (PoE) adapter card from Shanghai Mss International Trade Co., Ltd. is designed to meet the reading habits of English-speaking natives. With a power output of up to 30W, it provides efficient power supply to external devices. The adapter card features an external large 4Pin power supply replenishment interface for added convenience.
It offers adaptive power consumption output for external devices, supporting Class 0, Class 1, Class 2, and Class 3 power levels. The wider RJ45 pitch design of the adapter card ensures compatibility with various devices. Additionally, the specially designed interface for industrial cable access provides a secure and stable connection, solving the problem of unstable connections in industrial environments.
The adapter card is compatible with common cable access and features a larger heat sink to effectively dissipate heat in challenging environments. This ensures the stable operation of the adapter card over extended periods. The carefully selected thickened gold RJ5 connector guarantees a secure and reliable connectivity.

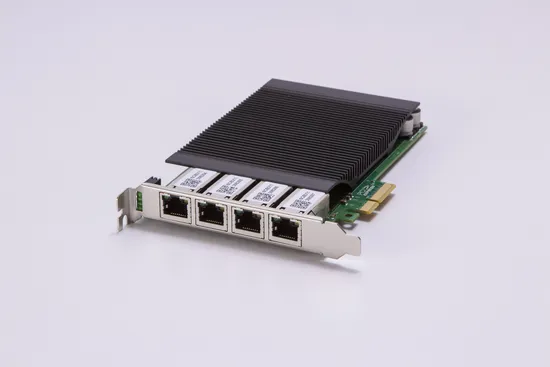

With its 4 8-pin RJ45 head design, this adapter card saves valuable PCIe slot resources on the motherboard. It is a reliable and efficient solution for powering and connecting external devices.

Features
Controller	Intel I350
Cable medium	Copper cable
Cable Types	Cat 5E and Cat6:1000Base-T up to 100m (POE power supply requirements Cat5) Cat 5E and Cat6:100Base-T up to 100m (POE power supply requirements Cat5)
Bracket	Full-height Bracket
Thermal design power consumption (max)	5W
Single-port PoE output power consumption(max)	30W
Connector	4*1G RJ45
PCIe Bus Type	PCIe v2.1 x4 , compatible with x8 , x16
Rate	10/100/1000Mbps
Operating system support	Windows XP/Vista/7/8/8.1/10/11 Windows Server 2003 R2/2008 R2/ 2012 R2/ 2016 R2/2019 R2/2022 R2 Linux Stable Kernel version 2.6.x/3.x/4.x or later; Linux CentOS/RHEL 6.5 / 7.x or later Ubuntu 14.x/15.x/16.x or later FreeBSD 9 / 10 / 11 or later VMware ESX/ESXi 2.6.x/3.x/4.x/5.x or later

Technical Features
IEEE Standard	IEEE802.3af -2003 PoE standard IEEE802.3at -2009 PoE standard IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE)
PCI-SIG* SR-IOV	Yes
Jumbo frame packet	Yes
VMDq	Yes
WOL	Yes
PXE	Yes
DPDK	Yes
FCoE	No

Environment Features
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40 to 85 (-40 to 185 )
Storage Humidity	90% non condensing under 35°C

LED Indicators
LED	1000Mbps, Orange bright + Green flashing
	10/100Mbps, Green flashing

Physical Features
PCB Size (mm)	149*104.3*1.6
weight (g)	251g

Order Information
M/N	Description
LRES2004PT-PoE	PCIe x4 1G Quad Port Copper Ethernet PoE Server Adapter
PS: The above details is just for reference,if there is any change,no inform will have.
