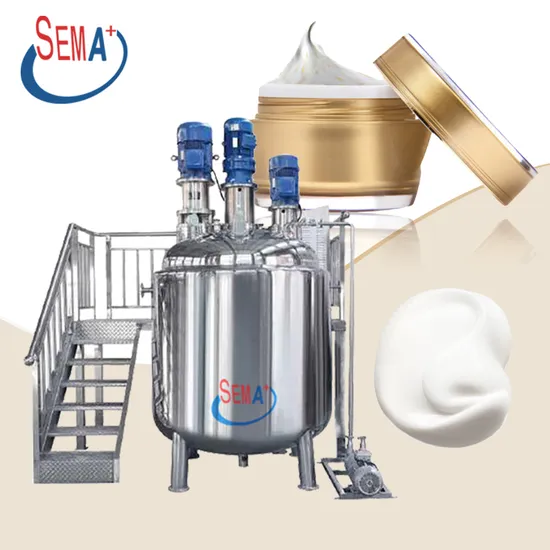

Cream Paste Product Mixing Tank/ Cosmetic Stirring Machine/Ointment Manufacturing Plant

Product Description

Product Description
The equipment is suitable for emulsification of the pharmaceutical. Cosmetic, fine chemical products, especially the material having high matrix viscosity and solid content. Such as cosmetic, cream, ointment, detergent, salad, sauce,lotion,shampoo, toothpaste and so on. The emulsifier is through the high-speed rotation of the homogenizing head connected to the engine, so that the material will become more delicate, and promote the fusion of oil and water.
Structure:
including main emulsifying pot, water and oil pot, vacuum pump, mixer, emulsify mixer, temperature control system. Safety system work frame and so on.
Depends on customer different requirements, we have different sizes emulsification machine.
Depends on customer different requirements, we have different sizes emulsification machine. Product Parameters

container type	ordinary pressure
	equipment	jacket
work pressure MPa	-0.09	<0.1
design pressure MPa	-0.1	0.1
work temp ºC	100	110
design temp ºC	100	115
material	material	hot water
main compression element material	316L	304
mechanical stirring	4.0kw 0-50r/min(415V)RF77
emulsify stirring	7.5kw 0-2900r/min
heating powder	9kw x 4 = 36kw
heating area	4.5
total volume m³	1.4
effective volume m³	1
insulation material and thickness	50mm, silicon, aluminum

Detailed Photos
Q1. How can I visit your factory?
A1:Please contact with us, and we are warmly welcome you visit our Factory if you have a travel plan.
Q2. How can you know if our machine is suitable for your production requirements?
A2:You can tell us your requirements and send us the sample pictures and videos. If possible, it is best to send samples to us for machine debugging.
Q3. How do you offer technical support? A3:1.Technical support by phone, email or MSN/Skype around the clock 2. Friendly English version manual and operation video CD disk 3. Engineer available to service machinery overseas
Q4. What's your guarantee or the warranty of the quality if we buy your machines? A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5. How could we contact you? A5:Please leave a message and click "send" to send us an inquiry.

---
