PVC Powder Milling Machine From Scrap and Flakes

Product Description

Product Description

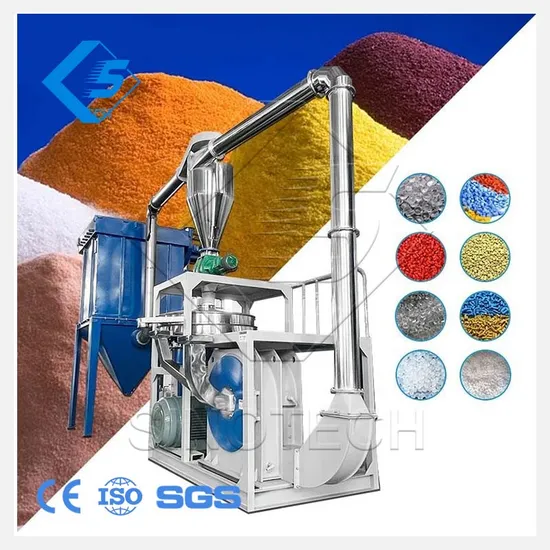

Machine name: PVC Powder milling machine from scrap and flakes
MF series Plastic Mill is a prefect machine for processing and grinding thermoplastics material, such as PVC, PE, PP, EVA, PLA, ABS etc, with high output and thin powder.
The MF series automatic plastic grinding mill is disc-type plastic grinding mill series, which has the advantages of high-yield and low-power.
Characteristics
The new disc design is used, high-yield, strong resistance and the life of this grinding disc is double the ordinary.
The use of newly designed professional bearings, and reach a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time and operation of machinery and control engineering.
Installation and maintenance easy, open the door to cover clean-up.
Milling process of the whole seal, without dust leakage.
Full automatic feeding, the materials and sorting.
Grinding gap adjustment is simple, just use the plug-foot bolts and adjustments can be fine-tuning (10-120 mesh).
The host used the water and wind double system; Rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface. Material entered the grinding chamber as soon as caught, groud, and then rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production. Product Parameters

Disc-type
Item Model	MF-400	MF-500	MF-600	MF-800
Main Motor(KW/hp)	22/30	37/50	45/60	45/100
Total Power(KW/hp)	26/35	44/59	54/72	88/118
Blade Material	SKD-11	SKD-11	SKD-11	SKD-11
Capacity	50-300kg/hr	80-500kg/hr	120-800kg/hr	200-1200kg/hr
Vibration Sieve	ZDS-800	ZDS-1000	ZDS-1000	ZDS-1200
Dimensions(mm)	2600x2200x3600	3000x2800x3900	3200x3000x4200	3500x3200x4500
Weight(kg)	1680	2280	2680	3580
Turbo-type
Item Model	SMW-400	SMW-500	SMF-600	SMF-800
Main Motor(KW/hp)	30/40	37/50	45/60	75/100
Total Power(KW/hp)	30/40	44/59	54/72	88/118
Vibration Sieve	No	ZDS-1000	ZDS-1000	ZDS-1200
Capacity(kg/h)	50-120	80-280	120-380	200-800
Dimensions(mm)	2200x1500x1600	3000x2800x3900	3200x3000x4200	3500x3200x4500
Weight(kg)	1000	1680	2280	2880

Detailed Photos
Turbo Feed Inlet Main Motor
Turbo Blade Frame Disc Blade Disc Blade Frame
Cooling Water Port Cyclone Separator Vibration Sieve
Application Material
This pulverizer is mainly applied for pulverizing polyethylene(PE,including LLDPE,LDPE,MDPE,HDPE).polyvinylchloride(PVC,including hard PVCand soft PVC).propene polymer(PP)polystyrene(PS)ABS,Nylon(PA),EVA,PET and other materials. Company Profile
Certifications

Packaging & Shipping
FAQ
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?
We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

---
