US$8,000.00-14,000.00
|
1 Set
(MOQ)
|
Basic Info.
Type
Surface Grinding Machine
Processing Object
Surface
Controlling Mode
Artificial
Cylindrical Grinder Type
Universal Cylindrical Grinder
Packing Space
2090*1940*2210
Transport Package
Plywood Box
Specification
500X250mm table
Product Description
Product Description

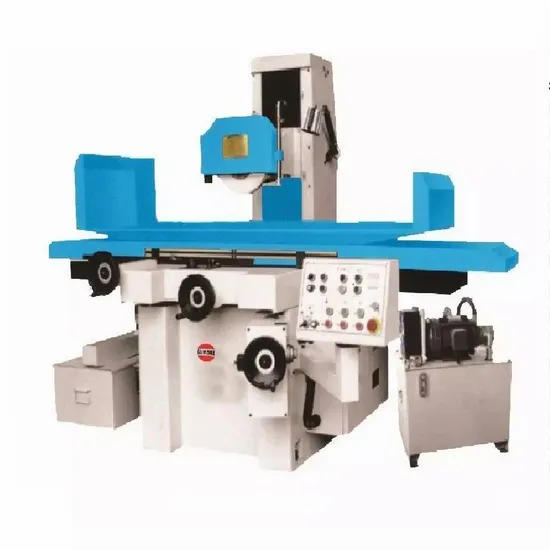

SGA Series saddle moving surface grinder surface grinding machine SGA4080/SGA3063/SGA40100 SG3060
HORIZONTAL SURFACE GRINDING MACHINE1.Hydraulic longitudinal table travel2.Quality castings and Precision ball bearing supporting the spindle3.Coolant system with nozzle and flow control valve4.Cast iron machine body and stand for maximum rigidity and smooth operation5.Vertical dial graduations 0.01mm6.Cross travel graduations 0.02mm7.Manual one shot lubrication pump8.Wheel balancing stand and arbor9.Halogen work light
Product Parameters
| Product Specifications |
Model
| SG3060
|
Working table
| 300*600mm
|
Floor space
| 2500*2600mm
|
Keay words
| surface grinder
|
Max. table travel
| 660mm
|
Max. cross travel
| 370mm
|
Distance between table surface and spindle center
| 540mm
|
Max table load
| 420kg
|
T slot
| 1*14
|
Crossfeed hand wheel
| 5
|
spindle speed
| 1450/1740
|
Spindle power
| 2.2kw
|
Hydraulic motor
| 1.5kw
|
Floor space
| 2600X2500mm
|
Packing space
| 2090*1940*2210
|
weight
| 1800/2100kg
|
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE certificate . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
>>
