Mpg500/Mpg750/Mpg1000/Mpg1500 Concrete Mixer

Product Description

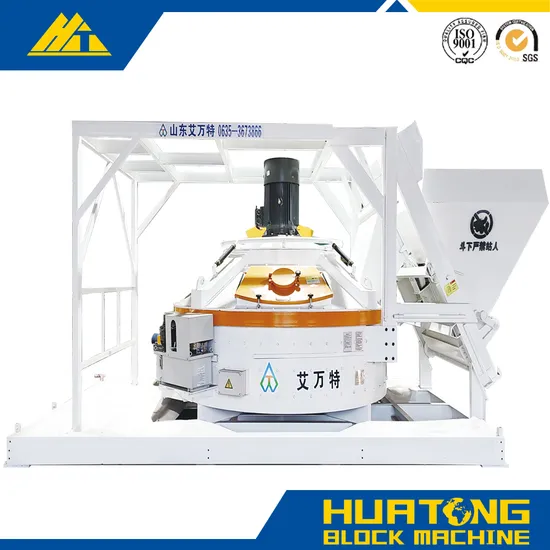

Product Description MPG Series Concrete Planetary Mixer
Planetary Mixer is produced by our excellent craft according to our experience and absorbing advanced technology of domestic and abroad mixer.Planetary Mixer apply to mix high quality concrete,it can also be used into other industry because of high efficiency,small space requirement,low consumption and environmentally friendly.Planetary Mixer can work separately,it can also used as main machine of ready mix concrete machine.

	Transmission System Special designed gear box can spread motor power averagely into mixing shaft.The transmission device is installed outside.Mixing motor is Siemens brand..The reducer is made by Dalian Konic Group according to requirements of Aiwante.The design and production adopts combination of Germany and Chinese Standard.
	Access Hole The access hole is large,it is convenient to clean and maintain.The key safety control device ensure machine do not work when access hole is open even power is on.
	Mixing Device Mixing shafts rotate itself and revolution movement.Mixing of blades is crossed and do not have any blind angle and low mixing space.The mixing machine is high strength,but it do not damage materials.It do not change materials shape and do not crush materials.
	Hydraulic Pump(Discharging Device) The hydraulic discharging system have manual open device.It can be opened when power is not available.Discharging door have limit switch,it can open door according to requirement.The discharging door have special designed seal device to ensure reliability.It is environmentally friendly.Switch of Discharging door have buffer device.
	Discharging Door The discharge door can be opened and closed pneumatically or hydraulically. The number of discharge doors can be opened up to three. There is a special sealing device on the discharge door to ensure reliable sealing, safety and environmental protection.
	Waterfeeding The waterway adopts an upper-mounted structure to solve the problem of residual additives and water in the pipeline. The nozzle adopts a spiral solid conical type, which has a fine and uniform atomization effect.It has a large coverage area, allowing the material to be stirred more evenly.
	Skip hopper The wire rope pulls skip through the winch and pulley mechanism.Skip moves to discharge position,discharge door opens automatically,it pours raw materials into mixing tank. The power is improved by using famous reducers and conical rotor brake motors, which have smooth operation and high braking performance. They have the advantages of frequent starts per unit time, temporary overload, and automatic braking at the moment of power off. The system is equipped with upper limit, lower limit and Maxi Limit, improve safety while ensuring fast and efficient operation

Detailed Photos
Product Parameters

Model	MPG330	MPG500	MPG750	MPG1000
Item
Input Capacity (L)	500	750	1125	1500
Output Capacity(L)	330	500	750	1000
Output Weight(KG)	800	1200	1800	2400
Mixing Power (KW)	15	18.5	30	37
Hydraulic Discharge Power (KW)	--	--	--	--
Planetary /Blade	1/2	1/2	1/2	1/2
Side Scraper	1	1	1	1
Discharging Paddle	1	1	1	1
Weight (KG)	2000	2400	3900	6200
Elevator Motor(KW)	4	4	7.5	18.5
Dimension (L*W*Hmm)	1870*1870*1855	2230*2080*1880	2580*2340*2195	2890*2602*2220
Model	MPG1500	MPG2000	MPG2500	MPG3000
Item
Input Capacity (L)	2250	3000	3750	4500
Output Capacity(L)	1500	2000	2500	3000
Output Weight(KG)	3600	4800	6000	7200
Mixing Power (KW)	55	75	90	110
Hydraulic Discharge Power (KW)	3	4	4	4
Planetary /Blade	2/4	3/6	3/6	3/9
Side Scraper	1	1	1	1
Discharging Paddle	1	2	2	2
Weight (KG)	7700	8500	10500	11000
Elevator Motor(KW)	18.5	22	22	22
Dimension (L*W*Hmm)	3230*2902*2470	3424*3217*2790	3690*3528*2790	3690*3528*3070

Certifications
Company Profile
Shandong Huatong Hydraulic Pressure Machinery Co., Ltd is one of the best Concrete Block Machine and concrete mixing plant in China which founded in 2004. Now we have sold machines to more than 65 countries such as Russia, North Korea, Malaysia, Vietnam, Egypt, Panama, Zambia, Sudan, Uganda, South Africa and so on...Our company covers 45000 square meters. There are 400 skilled workers, 12 engineers, 45 technicians. And huatong has 12 workshops which are used for steel cutting, welding, machining, assebling and so on. Our company is certificated enterprise by ISO9001. All machines must be inspected by the quality control department to ensure the quality. Huatong has R & D department and production workshop, specializing in machinery research and development work. The models of our concrete block machine are QT4-15 Semi-automatic Block Making Machine, QT5-15Semi-automatic Block Making Machine, QT5-15Automatic Block Making Machine, QT8-15Automatic Block Making Machine, QT10-15Automatic Block Making Machine. Meanwhile the models of our concrete mixing plant is HZS25, HZS35, HZS50, HZS60, HZS90 and HZS100. Our company has won many honours such as The Best Ten Brands of Block Making Machinery in China, Chinese Qualified Products, Member of China Construction Association, Advanced Technology of Mould Making from Shandong Scientific Center and so on

---
