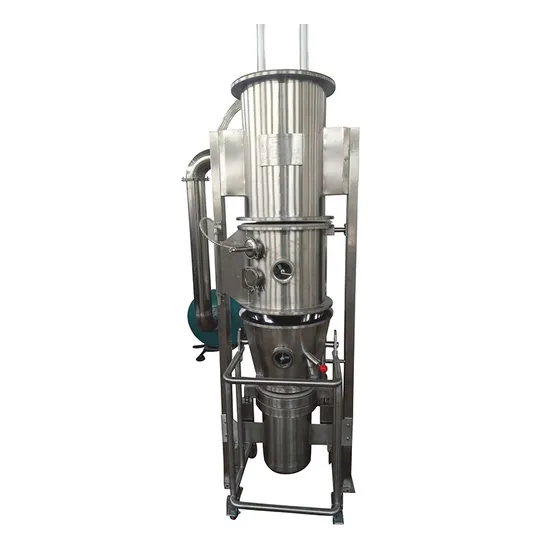

FL-60 Fluidized Bed Drying and Granulator with System for Solid Beverage Drinking Powder

Product Description

FL Series Boiling Granulating Drier
Machine Description
The method of boiling and granulating is a comprehensive fruit of spraying and fluidizing technology. It makes traditional mixing ,granulating and drying processes finish in the same closed container. So it is called as "one step granulator".
This machine has simple structure and is easy to clean and maintain .Not only it can make granule but also dry quickly. The process of mixing ,granulating ,drying will be finished in the same closed container at the same time. So it can prevent from pollution caused by contacting with environment and guarantee that the quality of medical granule is conformity with the requirement of "GMP".
The parts contacted with raw material are made of 1Cr18Ni9Ti stainless steel. The heating of machine can be divided into electricity or steam and the control part can be divided into ordinary form or computer form .Customer can choose it freely.
Schmatic of Installation
Features
1.Improve its fluidity and reduce powder dust to fly through powder granulating.
2. Improve its solving property through powder granulating
3. Mixing, granulating and drying can be finished in the same machine, i.e .one step to granulate.
4. Being adapted anti-static electricity filtering cloth, the operation of equipment is safe.
5. Being set discharge hole of pressure, if explosion were taken place, the equipment and personal can not be damaged.
6. The equipment has no dead corner. The loading and unloading is quick and convenient. It can be washed Clean .It is in conformity with the normal of GMP.
Scope of application
1.Medicine granulating Granulating ; granulator of tablet, quick solved drink, granule used for capsule.
2. Foodstuff granulating and coating: Sugar, coffee ,cocoa ,powder, cream ,powder syrup, amino acid, favoring, puffed food.
3. Granulating for pesiticide ,pigment , dyertuff.
4. Drying for powder ,granule, block raw materials.
5.Coating: granulate, pill protection layer ,formulated color ,slow release ,film ,coating for intesting solving.
Technical parameters

item		unit	type
			3	2.15	15	30	60	120	200	300	500
container	volume	L	12	22	45	100	220	420	670	1000	1500
	diameter	mm	300	400	550	700	1000	1200	1400	1600	1800
capability	min	kg	1.5	4	10	15	30	80	100	150	250
	max	kg	4.5	6	20	45	90	160	300	450	750
fan	capacity	m3/h	1000	1200	1400	1800	3000	4500	6000	7000	8000
	pressure	mmH2O	375	375	480	480	950	950	950	950	950
	power	kw	3	4	5.5	7.5	11	18.5	22	30	45
steam expenditure		kg/h	15	23	42	70	141	211	282	366	451
compressed air expenditure		m3/min	0.9	0.9	0.9	0.9	1.0	1.0	1.1	1.5	1.5
weight		kg	500	700	900	1000	1100	1300	1500	1800	2000
steam pressure		Mpa	0.3-0.6
temperature		.C	adjustable from ambient to 120.C
working time		min	decide in accordance with the properties of raw materials(45-90)
field		%	≥99
noise		db	When installation, main machine is separated form fan
size(L×W×H)		m	1.0× 0.6× 2.1	1.2× 0.7× 2.1	1.25× 0.9× 2.5	1.6× 1.1× 2.5	1.85× 1.4× 3	2.2× 1.65× 3.3	2.34× 1.7× 3.8	2.8× 2.0× 4.0	3× 2.25× 4.4

Product pictures
Hot products
Packaging & Shipping
one piece packed in a carton
inner package pearl wool
outer package export carton
packed by belt
Company Information
Jinhu Hongtai Machinery Co. Limited, located is a professional manufacturing and trading company of pharmaceutical machinery. We are located in Jiangsu. All equipment has passed ISO9001 quality management system certification and CE certification. We provide more than 100 models of 8 categories such as material processing machinery, medical packing machinery, label machinery, laboratory small equipments & preparation machinery , to supply ideal equipments and instruments for pharmaceutical factories, scientific research institutions, hospitals and laboratories. By stable quality, reasonable price and good after-service, we have established permanent relationship with customers all over the world, such as Europe, North America, South America, the Middle East, etc. With the business philosophy of quality first, customers supreme, we look forward to the sincere cooperation with you and the mutual development.
Our Services
1.One year guarantee for whole machine
2.24 hours technical support
3.Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4.After a year,we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5.we also can provide training service which help opeators handle the machine well.FAQ
1. What about your baling machine quality?
Our factory has more than 10 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported into many countries and areas; already got customer's good reputation.
2. What about your baling machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
