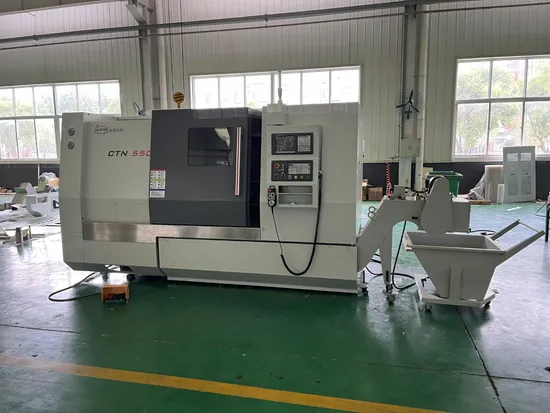

Hard Guide Slant Bed Machine Step Type Machine

US$35,000.00
1-4 set
US$34,000.00
5-9 set
US$33,000.00
10+ set

Basic Info.

Model NO.
CTN600/1000 CAK6160/1000
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Table
Precision
High Precision
Certification
ISO 9001
Condition
New
Net Weight
6000kg
Maximum Machining Length
1000/1500/2000
Transport Package
Packed in Wooden Cases with Steel Bottoms
Specification
6100*1800*2100
Trademark
xing
Origin
China Linyi
HS Code
8458110090
Production Capacity
1000

Packaging & Delivery

Package Size
3900.00cm * 2250.00cm * 2350.00cm
Package Gross Weight
6000.000kg

Product Description


item /specification
1 Max. swing dia. over bed 640mm
2 Max. turning dia. of workpiece 510mm
3 Distance between centers 1100mm
4 Bed form step-wise
5 Middle pallet 30°
6 Max.X stroke 310mm(hard guide)
7 Max.Z stroke 1100mm
8 Rapid feed X/Z 18/36m/min
9 X/Z motor speed 3000RPM
10 Z axis linear guide width 55mm( roller style)
11 Ball screw X/Z 3206/4012
12 Spindle speed 100-3000RPM
13 Spindle nose A2-8/A2-11
14 Spindle bore 92mm/130
15 Power of main motor 11KW/15/18
16 Spindle clamp 10 inch hydraulic chuck/12/15
17 Chuck bore 75mm/90/110
18 Tool holder Hydraulic Turret(taiwan)/POWER TURRET
19 Number of tool holders 12
20 Standard blade size 25×25mm
21 Maximum boring tool diameter 40mm
22 Tailstock stroke 800mm
23 Tailstock diameter 110mm
24 Tailstock Mandrel stroke 120mm
25 Tailstock taper MT5
26 positioning accuracy X/Z 0.019/0.029mm
27 repositioning accuracy X/Z 0.005/0.005mm
28 Overall dimensions of machine 3500x2100x1850mm
29 Case dimensions of machine 3700x2250x2280mm
30 Net weight /gross weight of the machine 5500/6000kg

1. In the design stage, FEA technology is used to simulate and analyze changes under various working conditions, realistic complexity and high rigidity design;
2. The class type 30° inclined bed is used to increase the bottom area, maximize the rigidity of the machine tool, and improve the comprehensive cutting performance.
3. The X axis of the structure adopts traditional rectangular hard rail to improve vibration damping and dynamic rigidity;
4. Z-axis adopts 55 large specifications and high rigidity roller guide rails to improve machine stability and dynamic response;
