Lt-02A ASTM D3078 Package and Bottle Vacuum Leak Tester

Product Description

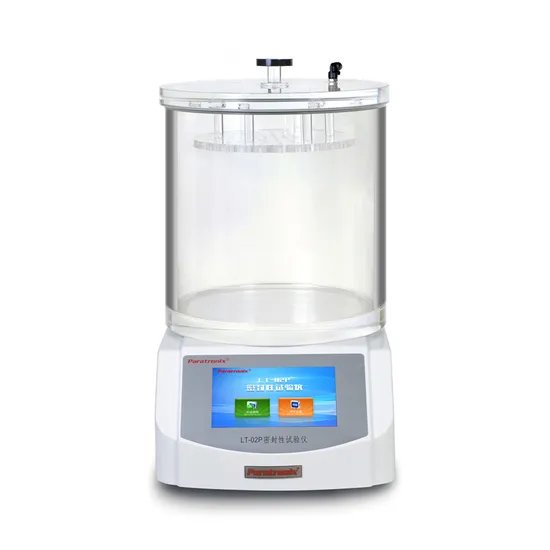

LT-02P Leak Teste is suitable for seal test of flexible packaging in food, pharmaceutical, daily chemical, electronics and other industries. The test can effectively compare and evaluate the sealing process and sealing performance of flexible packaging, and provide scientific basis for determining relevant technical indexes. It can also be used to test the sealing performance of the samples after the drop and pressure test. Compared with the traditional design, the intelligent test is realized: the preset of multiple test parameters can greatly improve the detection efficiency; the test mode of increasing pressure can be used to quickly obtain the sample leakage parameters and observe the creep, fracture and leakage of the sample under the stepped pressure environment and different holding time. Vacuum attenuation mode is suitable for automatic sealing detection of high value content packaging in vacuum environment. Printable parameters and test results (optional for printer) .
Parameters

Vacuum	0~-90 KPA
Sensor precision	≤0.5
Pressure regulation range	0.2-0.7 MPA
Vacuum chamber (other size customized)	Φ270 mmx210 mm (H) Φ360 mmx585mm (H) Φ460 mmx330mm (H)
Response speed	5 MS
Built-in mode	Single point mode, increment mode
Interface size	Φ6
Resolution	0.001 KPA
Pressure holding time	0-999999 S
Printer(optional)	Needle type
Air source	Compressed air (supplied by user)
Equipment size	420LX 300BX 165HMM

Product features ★Fully automatic test process with one click to complete the test
★Built-in high precision sensor, faster response
★Various modes available to meet the testing needs of different samples
★Multiple parameters presets for each mode, quick selection for testing
★Double air path design, more accurate test
★The number of test groups can be accumulated automatically, and the number of tests can be counted
★Optional needle printer can save and print test results
★Up to 500 test results can be saved with printing function (optional)
★Vacuum degree automatic maintenance and back-blowing unloading
★Super thick plexiglass vacuum chamber
★Configuration pressure regulating system, easy operation, easy maintenance
★Three level management authority (to be purchased separately)
★Gradient booster mode, more humanized
★Real-time stop, pressure holding time, higher accuracy

Test principle

By vacuuming the vacuum chamber, make the sample immersed in water produce internal and external pressure difference, observe the gas escape in the sample, so as to determine the sealing performance of the sample;
By vacuuming the vacuum chamber to make the specimen produce internal and external pressure difference, observe the specimen expansion and the specimen shape recovery after releasing the vacuum, so as to determine the specimen sealing performance.
Standards
ASTM D3078 ,GB/T 15171
Product configuration
sealing tester, vacuum tank, gas pipe, power cord, product certificate, warranty card, manual
FAQ
Are you a manufacturer or trading company?
We are the manufacturer and trading combo, which specialize in material testing instruments such as plastic package, medical device, facial mask, protective clothing and pharmaceutical package, etc. We located in Jinan, Shandong, China.
Do you have any certificate?
We have passed ISO 9001, IPMS management system certificates, and have 22 utility model patents and 17 software copyright certificates.
How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.
Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.
How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.
How long does the delivery time?
For the regular machine, 3-5 working days. For the customized one, 30 days or so.

---
