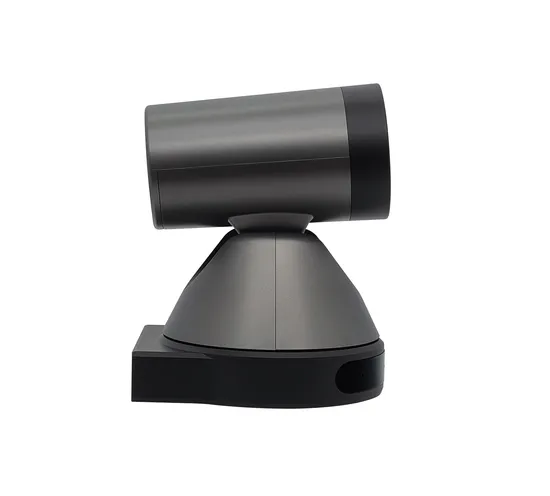

HD Webcam Camera with Built-in HD Microphone for Online Teaching Live Broadcasting Laptop PC

Product Description

HD Webcam Camera with Built-in HD Microphone For Online Teaching Live Broadcasting Laptop PC
Products Description
Full Function USB Interface 72.5° Wide-angle Lens Built-in Micphone Compatible with USB3.0 and USB2.0, Use 72.5° wide-angle high quality lens, Built-in micphone for optional, pickup
support audio, support compressed support 12x optical zoom, and 16x distance up to 6 meters, high sensitivity
video output, support UVC v1.5 protocol. digital zoom. and low base noise.
1080P Full HD Dual stream 1/2.8 inch, 2.07 million effective pixels high quality Support two stream output (YUY2, MJPEG, H.264 each of both), reduce
HD CMOS sensor, can reach maximum 1920 x 1080 the host codec pressure
high resolution and achieve quality image.

Main Features	Completely New Look Designed with worm gear transmission, completely new look, mini size. Full Function USB Interface Full function USB interface, compatibility USB3.0 and USB2.0, support audio, support compressed video output, support UVC v1.5 protocol. Built-in Micphone (V71U2) Built-in micphone for optional, pickup distance up to 5 meters, high sensitivity and low base noise. 1080P Full HD Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image. Ultra high compatibility Compatible with USB 3.0 and USB 2.0, support UVC v1.5 protocol, and support almost all video conference software on the market. 72.5° Wide-angle Lens + 16x Digital Zoom Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom. Low-light High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear. Remote Control Using RS232/USB, all the parameters of the camera can be remote controlled by the high-speed communications. H.264 Slice/ H.264 SVC Support Support Slice and SVC encoding mode, adapts to video conference of advance USB application. Dual stream Support two stream output (YUY2, MJPEG, H.264 each of both), reduce the host codec pressure USB infrared transmission (Optional) Base on customer needs, transmit infrared code value
Model	HZ-V71U	HZ-V71U2
Name	USB3.0 HD Video Conference Camera
Camera
Video System	1080P, 720P, 540P, 480P, 360P, 240P etc.
Sensor	1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode	Progressive
Lens	12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom	16x
Minimal Illumination	0.5 Lux @ (F1.8, AGC ON)
Shutter	1/30s ~ 1/10000s
White Balance	Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation	Support
Digital Noise Reduction	2D&3D Digital Noise Reduction
Video S/N	≥55dB
Horizontal Angle of View	72.5° ~ 6.9°
Vertical Angle of View	44.8° ~ 3.9°
Horizontal Rotation Range	±170°
Vertical Rotation Range	-25° ~ +25°
Pan Speed Range	1.7° ~ 100°/s
Tilt Speed Range	0.7° ~ 28°/s
H & V Flip	Support
Image Freeze	Support
Number of Preset	255
Preset Accuracy	0.1°
Built-in Microphone	Not Support	Support
Distance of Pick up	Not Support	6m
USB Featured
Operate System	Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color System / Compression	YUV 4:2:2 / H.264 / MJPEG
Video Format	YUY2 (BULK): max to 1080P@30fps YUY2 (ISOC): max to 1080P@30fps H.264 AVC: max to 1080P@30fps H.264 SVC: max to 1080P@15fps MJPEG: max to 1080P@28fps	YUY2 (BULK): max to 1080P@60fps YUY2 (ISOC): max to 1080P@30fps H.264 AVC: max to 1080P@60fps H.264 SVC: max to 1080P@30fps MJPEG: max to 1080P@30fps
Audio on USB	Support
USB Video Communication Protocol	UVC 1.5
UVC PTZ	Support
Input/Output Interface
USB Interface	1xUSB3.0: Type B female jack
Audio Interface	1-ch: 3.5mm Audio Interface, Line In
Communication Interface	1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
	1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
Power Jack	JEITA type (DC IN 12V)
Generic Specification
Input Voltage	DC 12V
Current Consumption	1.0A (Max)
Operating Temperature	-10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature	-40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption	12W (Max)
MTBF	>30000h
Size	128.5mm x 118mm x 156.2mm
Net Weight	0.91Kg

Applications Company Profile
Certifications
Recommend Camera Products
FAQ 1. Q: Are you Manufacturer or Trading company?
A: Manufacturer with more than 10 years experience.
2. Q: What's your main products?
A: We have been focusing on the production of HD&4K video cameras and its accessories since our foundation in 2008.
3. Q: Can you do OEM / ODM for us?
A: Of cause. Let us know what you need, we'll do it for you.
4. Q: Can we visit your factory?
A: Yes,you are warmly welcomed to visit our factory anytime, our factory is only half an hour driving from the Shenzhen Airport.
5. Q: If there is any problem about your products, should we have a refund or replacement?
A: If there is any problem within one year, you will get a brand new replacement.
6. Q: What is your delivery time?
A: For samples, within 1-3 working days after payment received. For bulk order, it depends on your quantity and requirements on OEM / ODM.

---
