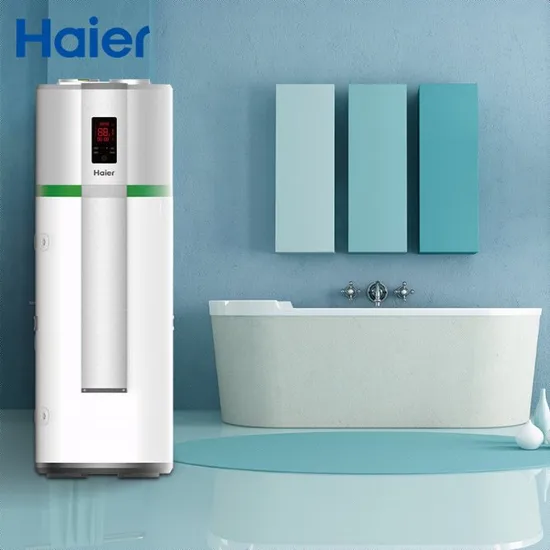

Low Price High Cop Residential Domestic High Temperature 75 Degree Mini R134A Air to Water All in One Type Air Source Heat Pump Hot Water Heater with 250L Tank

Product Description

Product Description
Product Parameters

Model	HP200M3	HP250M3	HP250M3C
Tank
Tank volume(L)	195	246	240
Rated voltage/frequency(V/Hz)	230V/50Hz	230V/50Hz	230V/50Hz
Tank rated pressure(bar)	7	7	7
Extra exchanger design/area	No	No	1m2
Corrosion proof	Magnesium anode	Magnesium anode	Magnesium anode
Performance
Type of extraction	Ambient/Exterior	Ambient/Exterior	Ambient/Exterior
COP@7°C(EN16147)	3.04	3.02	3.10
COP@15°C(EN16147)	3.39	3.41	3.56
Tapping cycle (EN16147)	L	L	L
Electric backup power (W)	1500	1500	1500
Average input - heat pump only(W)	495	495	495
Maximum input- heat pump only(W)	625	625	625
Maximum power input (W)	2125	2125	2125
Standby power input/ Pes(W)	27	27	27
Vmax	224	311	332
Heating up time (h)(@7°C)	5h30	7h21	5h55
Heating up time (h)(@15°C)	4h41	6h10	6h
Default temperature setting(°C)	55	55	55
Temperature setting range with heater(°C)	35-75	35-75	35-75
Temperature setting range heat pump only(°C)	35-65	35-65	35-65
Refrigerant type/Weight (kg)	R134a/0.9	R134a/0.9	R134a/0.9
Noise power dB(A)	57	58	59
Working temperature-system(°C)	-7-35	-7-35	-7-35
Dmensions and connections
Product Dimensions (D*W*H mm)-Tank	600*629*1692	600*629*1987	600*629*1987
Packing Dimensions (D*W*H mm)-Tank	736*695*1940	736*695*2250	736*695*2250
Gross weight (kg)-Tank/external unit	103	116	132
Net weight (kg)-Tank/external unit	91	102	119
Load qty.40HQ	51	51	51
*The COP and noise level data was tested in Haier lab.

Our Advantages
Step 1.The refrigerant fluid crosses the evaporator and absorbs the heat from the air drawn in by the fan. This process ensures the refrigerant changes state from a liquid to a gas through evaporation.
Step 2. The compressor pressurises the refrigerant gas, which causes it to increase in temperature.
Step 3.The refrigerant fluid loses further pressure and temperature by passing through the expansion valve causing it to completely return to its original state, It will be working by this recycle.
Step 4. From the condenser, the refrigerant gas transfers its heat to the water, which circulates into the home. This exchange process causes the refrigerant to cool down as it transfers the heat and forces it to return to a partial liquid state.Company Profile
FAQ
Q1. Who are we?A: Established in 1984, Haier is the world's NO.1 major appliance brand. Qingdao Haier New Energy Electric Appliance Co, Ltd, established in June 2013, is a professional engaged in the research, development, sale and service of electric water heater, overseas heat pump, commercial heat pump and GEA water heater etc.Q2. How can we guarantee quality?A: Always a pre-production sample before mass production; Always final Inspection before shipment.Q3. What can you buy from us?A: Heat pump water heater, air source heat pump, swimming pool heat pump, inverter heat pump, EVI heat pumpQ4. Why should you buy from us not from other suppliers?A: Haier is a listed company with the biggest and most advanced heat pump production factories all over China. We have a very strong and professional R&D team with more than 40 employees. 4 global R&D centers, superior engineers are in research for 24*7, 11global production base Q5. What services can we provide?A: Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU;
Accepted Payment Currency: USD, EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Arabic, Russian, Korean, Italian

---
