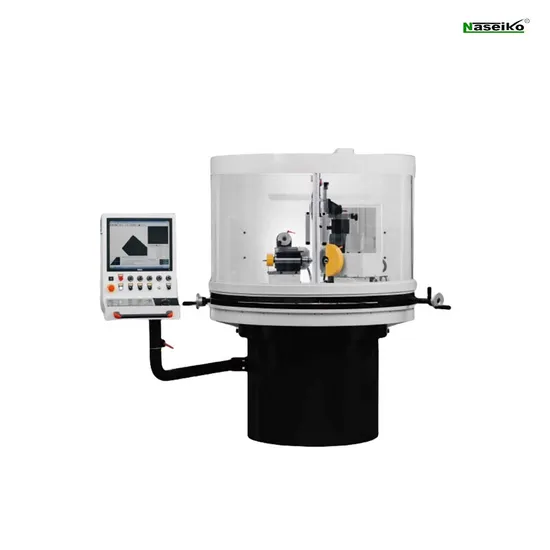

Nz-01d Diamond Dresser for Grinding Wheel Dresser CBN Wheel Truing and Dressing Machine for Tool Grinding Machine

Product Description

Detailed Photos
Product Description
It could not only trim diamond and CBN grinding wheel, but also the flat and side surface, angles, outer arcs and formed grinding wheel, as well as single and multiple grinding wheels.

Ideal for grinding diamond and CBN grinding wheel, as well as other types of grinding wheels with convient and efficient effect.

Easy to operate with high accuracy grinding wheel. The principle is the speed difference between the repaired and dressing

The repaired wheel is for diamond and CBN grinding wheel, while the grinding wheel is green silicon carbide grinding wheel.

The repaired grinding wheel could be adjusted in X-axis and Y-axis.

The dressing wheel could be adjusted in rotating A-axis, X1-axis and Y-axis directions with variable speed frequency reciprocating oscillation. The X1-axis and Y1-axis could be rotated and positioned for achieving 180 °
rotation of the whole grinding wheel.

Equipped with a CCD optical measurement system, grating ruler digital display measurement system, 10 Up to 100x magnification system and LCD display

Product Parameters

PROJECT	UNIT	NZ-01
Diamond grinding wheel spindle	-	BT40 / HSK50 /(or customized)
Maximum diameter of diamond grinding wheel	mm	Φ350
Minimum diameter of diamond grinding wheel	mm	Φ50
Maximum width of diamond grinding wheel	mm	40
Diamond grinding wheel speed	rpm	0-1500(continuously variable speed)
Diamond grinding wheel motor	kw	0.75
Left and right movement distance of diamond grinding wheel	mm	135
Forward and backward movement distance of diamond grinding wheel	mm	135
Diamond arc size	mm	Φ0.05-40
Dressing wheel (silicon carbide) diameter	mm	Φ180 / 10 / ψ32
Dressing wheel speed	rpm	0-2800
Motor Power of dressing grinding wheel	kw	0.75
Number of swinging times of dressing grinding wheel	rpm/min	0-50(continuously variable speed)
Length of swinging of dressing grinding wheel	mm	0-50(adjustable)
Swing motor power of dressing grinding wheel	kw	0.025
X-axis and Y-axis optical ruler device	mm	0.001
CCD and high-definition lens	piece	1
Data acquisition card	set	1
Lens holder	set	1
Lens cross workbench	set	1
LED bottom light	piece	1
LED upper light	piece	1
Computer host	piece	1
LCD display screen	inch	19
Loading the EDIS measurement system	set	1
Power supply voltage	-	380V,50HZ
Total power	kw	1.5kw
Machine size (length × wide × High)	mm	1600 / 1200 / 1800
Total weight of the machine	kg	About 1500

---
