High Speed Square Cup Forming Machine

Product Description

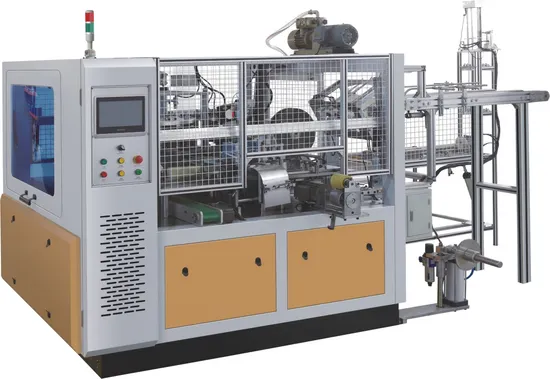

RD-FBJ70 High Speed square /rectangle cup forming machine is a professional equipment to produce th container at square/rectangular.
The machine adopts automatic rotary paper suction mechanism, the square customized molding die, the whole machine is driven by open gear, and the bottom is heated and extruded by hotair. It is suitbable for making special cups, such asa square bottom and round top, square bottom and square top and oval bottom. Product Description

Model	RD-FBJ70
Cups Specifications	6-28OZ
Cups material	Single PE/Double PE coated paper (Any one can be)
Paper Specifications	170-350g/m²
Speed	65-75 pcs/min
Weight	3200kg
Gas source	0.6m³/min
General Power	15Kw
Power supply	220v/380v, 50Hz
Packing Dimensions	2730*1660*1800mm(L*W*H)
Port	Ningbo/Shanghai
Shipping Details	By sea/air,according to customers' requirements.
Cup Size	Top:60-100mm; Bottom:40-75mm; Height:60-180mm
Other Products	Paper cup machinery,die cutting machine,paper cup forming machine,cup top flatten machine and other products.

The characteristic of the machine:
1.High speed paper bowl forming machine comes with two turnplate, open intermittent cam mechanism and gear transmission, longitudinal axis structures.
2. The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly.
3. Bottom sealing by hot air devices, so that the machine is efficient, the hot air device is imported from Switzerland.
4. Cup side sealing by ultrasonic and hotair.
5. Cup top curling has two steps, rotary curling and heating figuration, which makes the curling more stable and with better appearance (round and smooth).
6. The machine comes with PLC control system, sensor failure detecting and it stops working automatically if the machine has any problem, it can greatly improve operation safety and reducing labor cost. THE PLC, touch screen, Invertor, temperature controller and sensor is made in Korea.
7. More efficient and higher performance.
8. It is easy to make cups with different sizes by changing moulds.
9. With automatic cup delivery system and counter.

---
