Factory Outlet Ball Pen Making Injection Molding Machine

Product Description

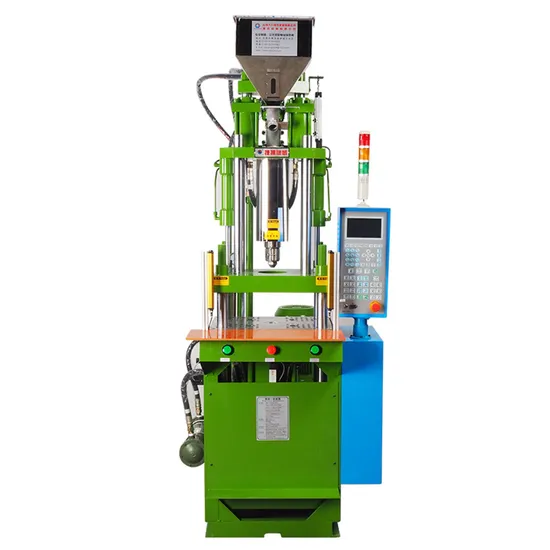

Factory Outlet Ball Pen Making Injection Molding Machine
Details photos:
Machine details :
Product Application:
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.
Specification:

MODEL	JY-550ST
		UNIT
INJECTIONUNIT	Screw Diameter	mm	Φ32	Φ36	Φ40
	Theoretical Injection Volume	cm³	128.6	162.7	226
	Injection Weight	g	121.5	153.8	201
	Max.Injection Pressure	Mpa	201	158.85	128.6
	Injection Rate	cm³/s	70.7	89.5	110.5
	Injection Speed	mm/s	88
	Injection Stroke	mm	160
	Screw Speed Rotation	r.p.m	0-200
	NO.of Temperaturecontrol		3+1
	Nozzie Out From Platens	mm	≥45
CLAMPINGUNIT	Clamping Force	KN(tf)	539(55)
	Clamping Stroke	mm	200
	Min.Mold Thickness	mm	180/280
	Max.Opening	mm	380/480
	Distance Between Tie Bas(L*W)	mm	470*280
	Max.Mould Size(L*W)	mm	500*450
	Platen Size(L*W)	mm	640*450
	Ejector Distance	mm	35
	Ejector Force	KN(tf)	17.2(1.75)
OTHERS	System Pressure	Mpa	13.7
	Oil Tank Capacity	L	175
	Electric Power	KW(HP)	7.5(10)
	Heater Power	KW	5.3
	Machine Dimensions(L*W*H)	m	1.7*1.3*2.8
	Machine Weight	tf	2.1

Main Features: 1) Straight screw ejected assembly.
2) Three-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3) Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4) Low-pressure closed die assembly can protect the safety of die.
5) Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6) Can be installed a single mold or double shuttle table.

Packaging & Shipping&Certification: 1.We will arrabge to manufacture the machine the second day after your confirmation.
2.Before shipment,we will check and test the machine carefully.
3.We will send the machine to your designated place in China.Besides,we can help you send the machine to your seaport if you need.
Company Profile:

FAQ:

Q1: Are you a trading company or a manufacturer?

A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements

Q2: What's your warranty for the machine?

A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.

Q3: What's your Delivery Time?

A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.

Q4: Why choose Jieyang Machinery Co., Ltd.?

A4: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.

You are welcome to consult!

---
