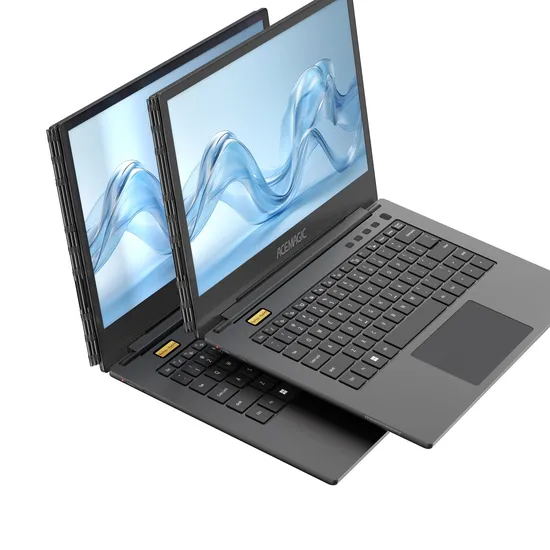

| Product Appearance |
| Type | Spec. | Standard Configuration | Optional |
| Product | Product Type | notebooks | |
| Special | / | |
| Dimension | | |
| Case Material | Plastic + Hardware (A/D) | |
| Weight | | |
| LCD | Screen Size | 14.0" x 2 IPS edp interface | |
| Screen Resolution | 1920*1080 16:9 | |
| Battery | Type | Lithium-ion polymer batteries | |
| Capacity | 15.48V 4000mAH | 4S1P |
| System Hardware Configuration |
| Type | Spec. | Standard Configuration | Optional |
| CPU | Model | Alder Lake i7-1255U | i7-1265U Expandable to 13 generations |
| manufacturing process | Intel 7 10nm | |
| core | 10 cores and 12threads | |
| cache | 12 MB Intel® Smart Cache | |
| base speed | 3.50 Ghz | |
| Maximum speed | 4.70 Ghz | |
| power wastage | 15W | |
| GPU | Model | Intel® Iris® Xe Graphics eligible | |
| speed | 1.25 Ghz | |
| resolution | MAX:4096 x 2304 @ 60Hz | |
| Memory | Model | Onboard DDR4 x 2ch | |
| speed | 3200MHz | |
| Capacity | Up to 16 GB | |
| Storage | SSD Capacity | SSD(Up to 2TB) | |
| SSD Type | M.2 x 2 NVME 2280 | |
| RTC | BIOS Support | support | |
| diskless network | BIOS Support | Support uefi diskless boot | |
| TPM | CPU Integrated TPM | Supports TPM 2.0 | |
| multi-screen | video output | Support HDMI*1+Main screen*1+Sub screen*1 under the system for three-screen simultaneous display | |
| Camera | Front | 2MP x 1 | With 2-way MIC, Indicator |
| Speaker | Size | Built-in 4Ω/1.5W speaker x2 | |
| LED | status indicator | Screen Cut Indicator: Main (default), Sub, Extended, Duplicate | |
| Internet Connection |
| Type | Spec. | Standard Configuration | Optional |
| WIFI | Model | M.2 E_Key | |
| protocols | IEEE 802.11 a, b/g, n, ac,ax (wifi 6) | |
| Bluetooth | Model | M.2 E_Key | |
| protocols | Support Bluetooth 5.2 | |
| interface |
| Type | Spec. | Standard Configuration | Optional |
| USB | USB3.0 | USB3.0 Type-A*1 5Gbps | |
| HDMI | video output | HDMI 2.0(Max 4K 60HZ)*1 | |
| Type C | data transmission | Type_C x 1 full function 10Gbps | Does not support reverse charging |
| POWER | Power Button | x1 | Integrated in the fingerprint module |
| DC IN | Power Supply Input | type_C x 1 | |
| | MIC | DMIC x 2 | In the camera module |
| Fingerprint Module | encrypted | x1 | |
| transducers | HALL Switches | x1 | |
| Display switching buttons | make a copy of | x1 | |
| extensions | x1 | |
| single display | x2 | One main screen, one secondary screen with single display |
| Antenna1 | FPC Antenna | WiFi 2.4+5G+BT x1 | |
| Antenna2 | FPC Antenna | WIFI 6.0 | |
| Software Configuration |
| Type | Spec. | Standard Configuration | Optional |
| OS | Version | Win11/Linux | |
| Environment |
| Type | Spec. | Standard Configuration | Optional |
| Environment | Working Temperature | 0~40ºC | |
| Memory Temperature | -20~60ºC | |
| Humidity | 90% @ 40 °C (no condensation) | |
| ΔT | MAX: 23 °C | |
| Accessory |
| Type | Spec. | Standard Configuration | Optional |
| Power Supply | Desktop/Plug-in | Input 100~240V 50/60Hz Output 65W Type C | |
