High Precision Universal Cylindrical Surface Grinding Machine My1224 My1230 My1232

Product Description

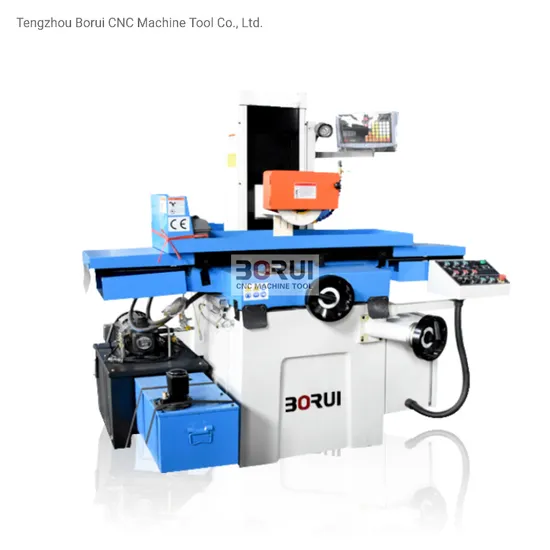

High precision Universal cylindrical Surface grinding machine MY1224 MY1230 MY1232
Product Application
The machine feature and specification . Guide way is coated with Turcite and precision hand scraped,move smoothly and keep the accuracy long life. Weil-designed control panel with two-way rotate structure,make the operator getting suitableoperating position very easy,improve work efficiency.
The grinder is standard equipped with auto down feed AC servo motor,and controled by PLC andHMI,to realize auto grinding,then to realize auto grinding.
For the control panel is equiped with HMl,by whcih the operator can easy operating on the machineto realizeauto working.
The main specification:

Model				MY1224	MY1224	MY1224
Bench	Max.workpiece to be Ground(LXWXH)		m	600*300	700*300	800*320
	Maximum travel of table(L X W)		m	640*320	760*370	860*380
	Table maximum cutting area(LX W)		m	640*320	760*370	860*380
	Number of T-Slot		mm	1x14	1x14	1x14
Tho grinding head	Distance from Table Surface To Spindle Center		mm	490	540	540
	Wheel Size(dia X width X bore)		mm	Φ300*30*φ75	Φ300x30xφ75	Φ335x30xφ127
	Spindle speeds (50HZ)		r/m	1440	1400	1400
The amount of feed	Table longitudinal (left and right) speed (stepless)		m/min	3--20	5-25	5--25
	Table horizontal (before and after) the amount of feed	Continuous (variable speed)	mm/min	150	150	150
		Intermittent (stepless)	mm	0-5	0-5	0-5
		The handwheel rotatos	mm	4	4	4
		Hand wheel each grid	mm	0.02	0.02	0.02
	Vertical (up and down) feed	The handwheel rotates	mm	2	2	2
		Hand wheel each grid	mm	0.01	0.01	0.01
Motor power	Spindle motor		kw	1.5	1.5	1.5
	Cooling motor		w	40	40	40
Reversing feeder	hydraulic motor		kw	1.5	1.5	1.5
	Working Pressure		Mpa	3	3	3
	Fuel tank capacity		L	80	80	80
	The Maximum flow		L/min	18	18	18
working precision	The machined surface of the base of parallelism		mm	300/0.004	300/0.004	300/0.004
	Surface Roughness		μm	Ra0.32	Ra0.32	Ra0.32
Weight of machine	Net		T	1.5	2.1	2.5
	Cross		T	1.65	2.35	2.75
Packingsize (LxWxH)			mm	1950x1700x2030	1950x1700x2030	2000x1800x2030

Standard Accessories:
Coolant tank
Shandard electro magnetic chuck
Balancing arbor
Wheel flange
Wheel extractor
Leveling wedge and bolt
Tool box and tools
Standard grinding wheel
Working lamp
Wheel dresser shant(not include diamond pen)
Build inelectro magnetic chuck
Packing shipping
For machine: usually by sea; For documents: by international express, eg. DHL,TNT or EMS. For packing :Free fumigation plywood packaging steel base our service 1. Technical support online service provided. 2. Technical files service provided. 3. Machine operation video provided 4. On-site training service provided. 5.Spare parts replacement and repair service provided. 6 All of the questions will be replied within 8 hours 7. If you need to develop products with your own specification, we can help you to work it out. 8. Always be honest, never lie to customer, and never declare anything we don't have Company Information Since 1996,20 years' history for machine tool manufacturing 10 years' history for export Total 2 manufacturing bases in china Sino-germany technology cooperation Production of 8 categories, more than 130 kinds of products Set up design&research center at TAIWAN Exported to total 48 countries in the world covered most areas One-stop shopping for nearly all other types' machine tools Packing shipping
For machine: usually by sea; For documents: by international express, eg. DHL,TNT or EMS. For packing :Free fumigation plywood packaging steel base our service 1. Technical support online service provided. 2. Technical files service provided. 3. Machine operation video provided 4. On-site training service provided. 5.Spare parts replacement and repair service provided. 6 All of the questions will be replied within 8 hours 7. If you need to develop products with your own specification, we can help you to work it out. 8. Always be honest, never lie to customer, and never declare anything we don't have Company Information Since 1996,20 years' history for machine tool manufacturing 10 years' history for export Total 2 manufacturing bases in china Sino-germany technology cooperation Production of 8 categories, more than 130 kinds of products Set up design&research center at TAIWAN Exported to total 48 countries in the world covered most areas One-stop shopping for nearly all other types' machine tools1:How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination. Contact Us

---
