| US$35,000.00-40,000.00 | 1 Piece (MOQ) |

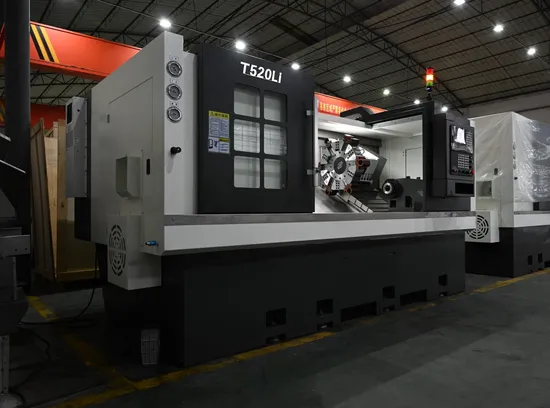

| Technical Agreement for JT52/1000 FANUC System | ||
| Zhejiang JingTai CNC Equipment Co., Ltd. | ||
| Item | Name | Parameters |
Processing Range | Maximum Swing Over Bed Diameter (mm) | Φ620 |
| Maximum Turning Diameter (Disc Type) (mm) | Φ520 | |
| Maximum Swing Over Carriage Diameter (mm) | Φ350 | |
| Maximum Workpiece Length (mm) | 1030 | |
| Maximum Bar Material Through Hole Diameter | Φ52 | |
| Center Distance (mm) | 1050 | |
Travel and Fast Feed | X-axis Travel (mm) | 300 |
| Z-axis Travel (mm) | 1100 | |
| X, Z Axis Rapid Traverse Rate | 20 m/min | |
| X, Z Axis Servo Motor | bis22/bis22 | |
Spindle | Spindle Nose Type | A2-6 |
| Spindle Through Hole Diameter (mm) | Φ66 | |
| Maximum Spindle Speed (rpm) | 3000 | |
| Spindle Motor Power (kw) | 15 | |
| Chuck and Rotary Cylinder Specifications | 8 inch | |
| Machining Accuracy | X, Z Axis Repeatability | ±0.002mm |
| X, Z Axis Positioning Accuracy | ±0.004mm | |
Hydraulic Tailstock | Tailstock Sleeve Specification | MT-5 |
| Tailstock Sleeve Travel | 100 mm | |
| Tailstock Movement Mode | Saddle Driven, Hydraulic Extension | |
Other Specifications | Bed Structure Type | 30° Integral Slant Bed |
| Turret (Tool Position) | 125 Center Height 12 | |
| Turret Diameter (mm) | Φ450 | |
| Tool Holder Specification | 25*25 | |
| Boring Bar Specification | Φ40 | |
| Dimensions | Length × Width × Height (mm) | 2980×1910×1850 |
| Weight | 5500 kg | |
| Standard Configuration | ||
| Accessory Name | Brand | |
| CNC System | FANUC 0I TF PLUS | |
| Servo Main Motor | Super Synchronous | |
| X, Z Axis Servo Motor | FANUC bis22/3000 | |
| Spindle | Dantron | |
| Spindle Bearing | KOYO | |
| Ball Screw Bearing | NACHI | |
| Linear Guide | HIWIN/Silver | X-axis: 45 roller |
| Z-axis: 45 roller | ||
| Ball Screw | HIWIN/Silver | X-axis: 4010 |
| Z-axis: 4010 | ||
| Hollow Rotary Cylinder | Kepu | |
| Hollow Hydraulic Chuck | QianDao | |
| Servo Turret | Taixin | |
| Automatic Lubrication System | Huru/Liangseng | |
| Cooling System | Jingjiang/ Lokai | |
| Lighting System | High-quality domestic | |
| Heat Exchanger | Lingji | |
| Electrical | Chint | |
