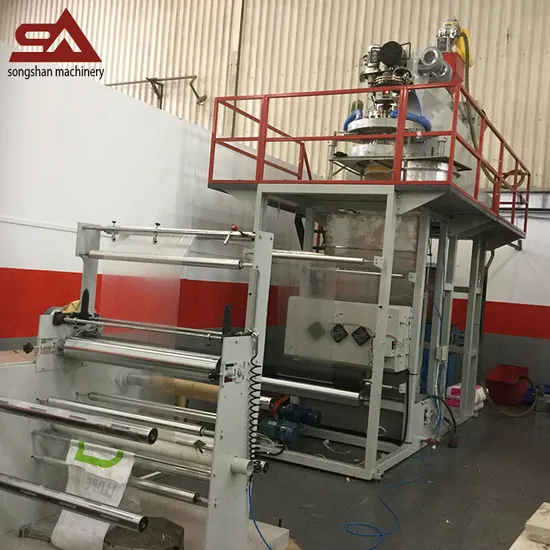

Double Winding Station 600mm Film Width Water Cooling PP Film Blowing Machine

Product Description

Double winding station 600mm film width water cooling pp film blowing machine
The Film blowing machine is used to blow the plastic films like LDPE (low density polyethylene), HDPE (high density polyethylene) and LLDPE (linear low density polyethylene) into bubble film. Its products are widely used to pack fruit, food, clothes, textile, like garbage bags and vest/T-shirt bags, shopping bags and daily necessities and other industrial products.
PP Film blowing machine Features:
The product is featured by high transparency, good printing performance etc. Die head rotates 360°continuously to enhance the evenness of film. It's widely used in daily use package and other industrial package, like food stuff, textile, garment and daily products ect.

Model		SJSS-55	SJSS-60	SJSS-65
Features	Raw Material	PP
	Output	30Kgs	50Kgs	60Kgs
	Film Width	400mm	600mm	800mm
	Film Thickness	0.008mm-0.1mm
	Power supply	380V, 3Phase, 50Hz
	Machine weight	2000kg	3000kg	3500kg
	Dimension	6x1.5x4m	6x1.7x5m	6x2.5x5m
Extrusion Unit	Screw& Barrel Diameter	55mm	60mm	65mm
	Screw& Barrel L/D ratio	30:1
	Motor	15KW	18.5KW	22KW
	Gearbox	146	173	173
	Die Head Type	Rotary Die Head
	Die Size	150mm	250mm	300mm
	Heating	15KW	18KW	22KW
	Blower	2.2KW
Film Traction Unit	Roller Length	600mm	800mm	1000mm
	Traction Motor	1.5KW
Winding Station	Winder Type	Single winding Station Or Double winding Station
	Rollers	600mm	800mm	1000mm
	Torque Motor	15N/M
	Max. Winding Diameter	600mm
Control Panel	Electronics	Top China Brand
	Inverter Capacity	15KW/1.5KW	18.5KW/1.5KW	22KW/1.5KW
Optional Equipment		Hopper loader, Corona, Oven Dryer

---
