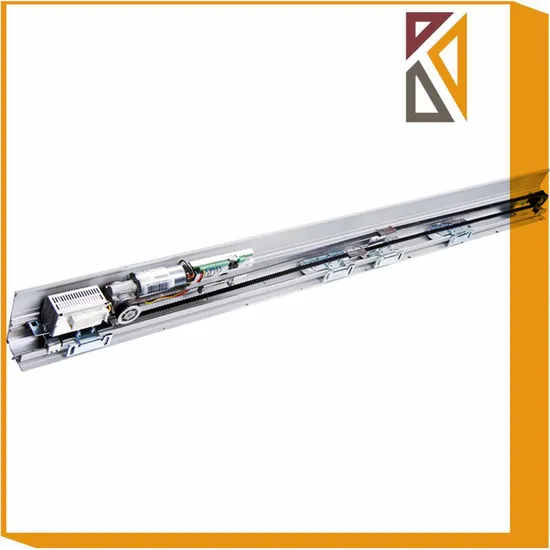

Frame Es200 Automatic Sliding Glass Door Opener with Dunkermotoren Motor

Product Description

ES200 for sliding pedestrian doors, with a maximum capacity of 200 kg, designed for heavy duty use, with smart control system using the latest germany technology, to permit self regulation of the movement depending on the weight and size of the door panels. Safety functions incorporated, with control of thrust force, automatic reversal in case of detection of an obstacle in the panel slide zone and fuse protection. Encoder for automatic reading of the run, position and slowing of the doors. CE marking. Customizable functions: opening and closing speed; open time for automatic/partial; partial opening; selection of mode of emergency operation with battery, etc. Night-bank open and Error display.
Sectional View,
European slimline and modular design, height is less than 100mm, track is divided into supporting profile, guide profile and rubber. It not only simplifies the installation and maintenance ,but also ensure operator's more smooth and quite working.
Microcontroller,

Microprocessor controller	yes
Microprocessor-controlled function programs - Off - Automatic - Permanent open - Partial opening - Exit only - Night-bank control	yes yes yes yes yes yes
Emergency off	yes
Self-learning	yes
Automatic reverse	yes
Connection for biostable electro-mechanical locking	yes
Connection for light barriers	yes
Setting of basic parameters via integrated display and push-buttons	yes
Emergency opening or closing (with use of battery pack)	yes
24 V output for external consumption	yes
Read-out error store with error codes	yes

Technical Datas,

Single open	Opening width	700mm-1400mm
	Door weight	1 x 200kg
Double open	Opening width	800mm-2000mm
	Door weight	2 x 180kg
Profile size	L	4200mm
	H	100mm
	D	180mm
Opening speed	10-70cm/s
Closing speed	10-50cm/s
Motor & Encoder	Dunkermotoren GR63x55, 40V,80W DC brush motor and RE20 encoder from Germany
Activation	Optex/BEA combination sensor, remote controller or program switch
Manual force	150N
Hold-open time	0s - 180s
Electric Characteristics	Main power	AC230,50Hz/ AC110,60Hz
	Consumption	250W
	Fuse
IP protection	IP20

---
