Product Details
Product Description
Product Description

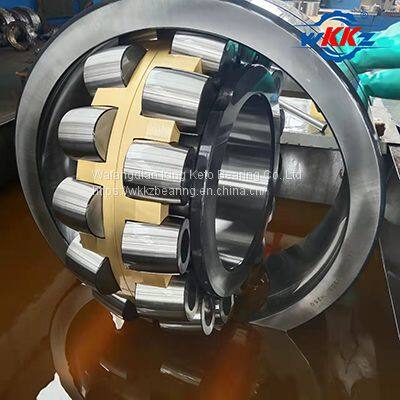

23984CA/W33,3053984KH spherical roller bearings
Origin from China bearings factory direct supply
Part naumber / description
1. Cylindrical bore: 23984 CA/W33 spherical roller bearings
2. Tapered bore K: 23984 CAK/W33 spherical roller bearings
3. Tapered bore K30: 23984 CAK30/W33 spherical roller bearing
Equivalent model : 3053984KH spherical roller bearing
23984CA spherical roller bearings size of 420X560X106 mm
d 420 mm bore diameter
D 560 mm outer diameter
B 106 mm Height diameter
r1.2min: 3
Cr:1870 kN
Cor: 4250 kN
Grease: 500 rpm
Oil: 600 rpm
Mass:71.6 kgs
Cage: Integrated machined brass CA cage
Bore type: Cylindrical ,tapered 1:12, tapered 1:30
Rings Material: Bearings steel GCr15SiMn
W33: Three lubrication holes
Grade : ABEC1, ABEC3, ABEC5
Rolling elements: Double rows precision rollers
C3 and C4 clearance of 23984 spehrical roller bearings
| Part Number | Bore size | C3 clearance | C4 clearance | Bore type | Cage |
| 23984CA/W33 | 420 | 0.37-0.5 | 0.5-0.66 | Cylindrical | CA brass cage |
| 23984CAK/W33 | 420 | 0.44-0.57 | 0.57-0.72 | Tapered 1:12 | CA brass cage |
| 23984CAK30/W33 | 420 | 0.44-0.57 | 0.57-0.72 | Tapered 1:30 | CA brass cage |
China factory direct supply high accuracy 23984 CA, 23984 CAK,23984 CA/W33,23984 CAK/W33 spherical roller bearings
---Roller bearings warranty and quality
1.100% inspection before shipment
2.100% drawing processed bearings
3.12-18 month warranty days
4.Free sample for testing quality
--Features of WKKZ BEARING - spherical roller bearings
High quality,low noise
Top bearings steel keep bearings working with long service life
Good lubrication,advanced processed technology
High durablitiy ,high performance
--Multi shipments of Air shipment,Sea shipment,Express delivery
China bearings supplier:
Wafangdian King Keto Bearing Co.,Ltd (WKKZ BEARING)
| 23984CA/W33 | 23984CA |
| 23984CAK/W33 | 23984CAK |
| 23984CAK30/W33 | 23984CAK30 |
| 23984MB/W33 | 23984MB |
| 23984MBK/W33 | 23984MBK |
| 23984CC/W33 | 23984CC |
| 23984CCK/W33 | 23984CCK |
| 23984CCK30/W33 | 23984CCK30 |
>>
