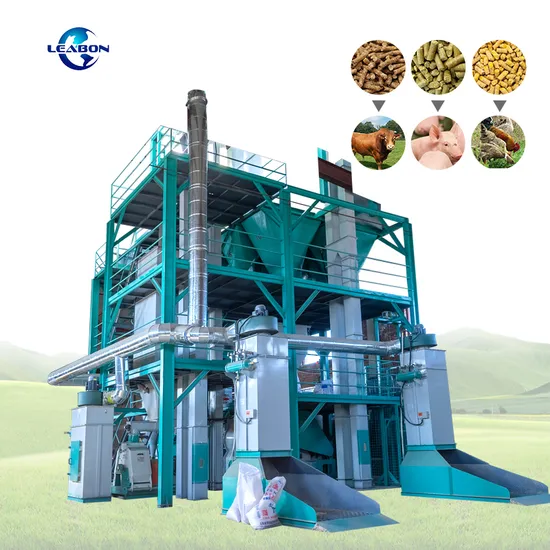

Complete Farm Use Corn Feed Pellet Processing Line Animal Livestock Feed Pellet Making Line

Product Description

Complete Farm Use Corn Feed Pellet Processing Line Animal Livestock Feed Pellet Making Line
Product Description
1.this production line including hammer mill, feed mixer, feed pellet machine, counter flow cooler&screen,packing machine in one, advanced design, simple structure, wide applicability, small area, low noise.
2.The particles are suitable for feeding rabbits, cows, ducks and other animals, and can achieve higher economic benefits.
3.The machine can be used to granulate different materials to achieve the best effect.
4.Adapt to different materials to ensure the pressing effect.
Flow Chart of Complete Feed Pellet Production Line
The feed pellet line mainly processes includes
1.Hammer Mill

Feature:
1)Widely used in feed mills,food factories,livestock farms, etc;
2)Used for crushing various kinds of pellet raw materials such as corn, sorghum, wheat, bean, wood chip, etc; it' an ideal general type hammer mill;
3)Rotor has passed high precision balance test;small vibration and long service life.
4)The hammer, screen and pin axle have gone through special heat treatment; they have a long service life and high crushing effect
5)The operating door has a self-locking mechanism,convenient, safe and reliable.
2.Feed Mixer
Feature
1)HJJ series of horizontal ribbon mixer is suitable for concentrated feed, the full price of powdered feed mixing.
2)Specially designed nesting institutions open angle rapid discharge, fast discharge, small residues.
3)Double helix ribbon hybrid mixed in no dead ends,short cycle. Designed with liquid oils to add pipe.
4)Pneumatic or manual door opening mechanism,convenient and reliable.
5)The novel structure of the rotor gap between the rotor and the casing can be adjusted to near zero.
3.Ring Die Feed Pellet Machine
CM Series Ring Die Feed Pellet Machine
1)Drive mechanism adopts high strength belt, with steady running and low noise;
2)Drive mechanism adopts high quality bearing to ensure high speed and stable operation;
3)Feeding part is equipped with a permanent magnet to remove Metallic impurities; this prolongs the service life of main parts and meanwhile reduce the use of auxiliary equipment.

Parameter/Model	CM-25A	CM-25B	CM-30B
Output(kg/h)	1000-1200	1000-1500	1500-2000
Power (kw)	22	22	30
Feeding motor(kw)	/	0.75	0.75
Revolving Speed of ring die (r/min)	306	306	330
Inside diameter of ring die(mm)	250	250	304
Pellet diameter(mm)	Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8	Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8
Dimension(m)	1.1*1.15*1.25	1.1*1.15*1.25	1.35*1.3*1.6
Weight(kg)	625	710	960

SZLH Series Ring Die Feed Pellet Machine
SZLH series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for checmical industry, fertilizer industry and sugar industry.

Model	Main power(kw)	Out-put(t/h)	Power of Conditioner(kw)	Power of screw feeder(kw)	In-side of rind die(mm)
SZLH320	37	2-3	2.2	0.75	320
SZLH350	55	3-5	3	0.75	350
SZLH400	75/90	3-10	5.5	1.5	400
SZLH420	90/110	3-14	5.5	1.5	420
SZLH508	110/132/160	6-15	7.5	2.2	508
SZLH558	180/200	10-20	11	2.2	558
SZLH678	220/250	25-30	18.5	3	678

4.Cooler
Feature
1)Adopt counter-flow cooling theory, the pellets cooling fully and evenly;
2)Adopt unique vibrate materials discharging institution, discharging evenly, no residue;
3)The pellets after cooling, the temperature not higher room temperature 3-5 degree;
4)Unique arc-shaped cooling bin, no cooling g dead corner.
5.Screener
Feature
1)It's the ideal cleaning, shifting and grading equipment for the granule and powder material in feed pellet mill.
Also popular used in pre-cleaning of raw material, intermediate products grading after the second crushing in
feed factory.
2)The rotary screener is mainly used for the large,middle size animal feed factory.Also the grain,food,chemical
industry, etc.
6.Packing machine
Feature
1)New controller with high precision can display the total weight, number of package, easy operation.
2)The adaptive software, having the function of automatic control parameters setting,automatic drop revising, over-weight warning and auto-diagnosis.
Production line case
Different Capacity Complete Feed Pellet production line
Raw Materials&Final Products
Application
Packaging & Shipping
Normally, we adopt wooden case or container.If export to European countries,the wooden box will be fumigated.If container is too small,we will use PE film for packing or pack it according to customers special request.
Our transport operators & delivery facilities are ready on time and when the contains arrive at the factory , they are guaranteed to ship according to the scales .
After Sales Service
1.We can provide you the one year warranty but without the spare parts.
2.The professional and timely 24 hours after-sale service.
3.The relative video of the machine installation and instruction will be provided for you.
4.We can provide you the different mould to meet your different requirements.
5.We can also meet the special voltage demand.
6.The engineer is available to service machinery oversea
Our Company
FAQ

Q1:what's raw material suitable for making feed pellet? ------Corn,soybean,wheat,rice,wheat bran,fish meal,bone powder,meat, alfafa,silage,straw,grass, hay etc.

Q2:What's the capacity of your feed pellet machine can be choose? ------The SZLH series have 0.5-1.5T/H,2-3T/H,3-5T/H,3-10 T/H,3-14 T/H,6-15 T/H,10-20 T/H,25-30 T/H to choose from; the CM series have 100-200kg/h, 500-700kg/h, 1000-1200kg/h, 100-1500kg/h, 1500-2000kg/h to choose from.

Q3:What's the certification of your feed pellet machine? ------CE Certification.

Q4:What's the warranty of feed pellet machine? ------Warranty:1 Year(except spare parts).

Q5: What's your payment terms? ------Payment terms: T/T; L/C; Western Union; Money Gram.
