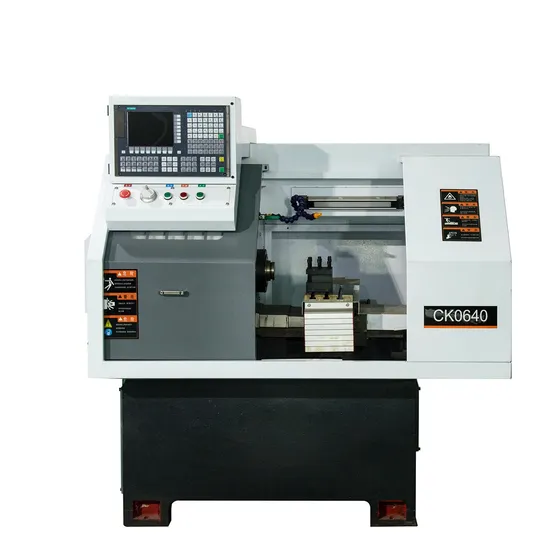

Ck0640 High Precision CNC Machine Mini CNC Milling Machine Metal Cutting Lathe Machine with Optional Milling Power Head

Product Description

Basic Information

Model	CK0640	Name	Computerized Numerial Controlled Lathe Machine
X drive	560 mm	Z drive	330 mm
spindle bore	spindle bore	Transport Package	Standard Plywood Package
Origin	Taizhou,China	Trademark	XINSHIHENG or Customized
Machine Weight	700kg	Machine Size	1600*1100*1600mm
Installable Accessories	chat with supplier	HS Code	8458.11
Machine Bed	Horizontal Bed	Milling Cutter Structure	Integral
Specification	ISO9001	Production Capacity	100 set/month

Product Description
Detailed Photos
Packaging & Shipping
Customer Receiving Goods
Product Parameters
Standard Configuration:
Machine Model: CK0640 (Selectable 60mm spindle)
Specifications of bed: 260*840 hard rail
Foot specification: 500*1100mm
Control system: Keyuan 980TB2 system
Clamping configuration: pneumatic clamping (optional hydraulic)
Tool configuration: row tool post 3 pieces
Feed device:
1. X axis screw: 2505*540 (Jiangsu Taier)
2. Z-axis lead screw: 3206*620 (Jiangsu Taier)
Spindle bearing: 7215/7213 (Renben bearing)
Other configurations: 1. Electric oil pump 2. Water pump
Machine bed: Bed 250 casting

Parameter	SPECIFICATIONS	Units	CK0640
Machining Capacity	Maximum turning diameter over bed	mm	Φ260
	Maximum turning diameter over turret	mm	Φ120
	Maximum machining length	mm	150
	Maximum bar machining diameter	mm	40
	Diameter of spindle bore	mm	Φ48
	Maximum stroke of X/Z	mm	560/330
Power System	Spindle maximum spindle speed	r/min	3000
	Spindle Motor	KW	4
	Spindle Transducer	KW	4
	X/Z drive motor	N/M	4/4 (Keyuan Original)
Tool Post	Height of rectangular tool shank section	mm	20
Precision	Repeat Positioning accuracy	mm	0.01
	Machining accuracy	mm	<0.01
	Spindle beat	mm	<0.01
Other	Hydraulic pump motor	kw	0.75
	Cutting fluid pump motor	kw	0.4
	Power supply power	KVA	7.5
	Machine weight	kg	700
	Machine Size	mm	1600x1100x1600

Company Profile
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms? A:FOBCFRand CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What is your trade terms?
A:FOB,CFRCIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MoQ is one set, lathe warranty is one year and system warranty is three vear
6. What is the package of the machines?
A:The machines standard will be packed in wood case.
7.how to guarantee the precision
In order to guarantee the high precision, we use integrate bed, and imported accessories, such as ball screw rod,
Linear guide rail, automatic lubrication system, during the effective machining range, our machine can guarantee the error 0.01mm.

---
