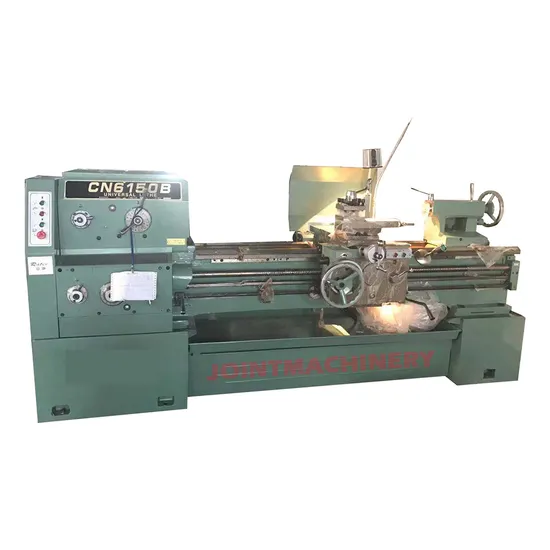

Cn6240b/2000 User-Friendly Manual Lathe Machine for High-Quality Metal Turning

Product Description

√ Immerse yourself in a world of unparalleled precision and robustness with our meticulously engineered machine guide way. Boasting a hardness beyond HRC52°, it stands as a testament to our commitment to quality. This exceptional durability and precision are achieved through the use of our high-precision CNC guide way grinding machine, ensuring your machining tasks are executed with remarkable accuracy and longevity.
√ Crafted to perfection, the lathe head box, feed box, and sliding box undergo precision CNC machining, embodying the pinnacle of machining excellence. This meticulous process guarantees each component achieves unmatched precision, meeting the most stringent standards of quality and performance.
√ Revel in the serenity of low gear noise with our advanced transmission gear. Each gear is subject to precise CNC gear grinding and thorough noise testing, resulting in a seamless and quiet operational experience that enhances your machining environment.
1. Quenched Guideway
Experience the zenith of durability and performance with our quenched guide rail, setting a new standard with its extraordinary hardness and wear resistance.
2. Tool Post
Equip your lathe seamlessly with a standard 4-position tool post, and elevate your machining versatility with an optional quick-change tool post for dynamic and efficient operations.
3. Three-Jaw Chuck
Our lathe comes standard with a 3-jaw manual chuck. For those seeking expanded capabilities, opt for a versatile 4-jaw chuck to enhance your machining range.
4. Tailstock
Engineered with precision, the standard manual tailstock is perfect for proficiently managing shaft bar workpieces, ensuring efficiency and reliability.
5. Working Light
Incorporate ease and efficiency into your operations with a strategically positioned working light, enhancing convenience and operational visibility for operators.
CN6240B/2000 User-Friendly Manual Lathe Machine for High-Quality Metal Turning

Model			CN6240
Max swing over bed		mm	420
Center height		mm	210
Max work piece length		mm	1000, 1500, 2000, 3000
Bed rail width		mm	390
Max turning diameter of work piece on tool holder		mm	220
Max turning diameter of workpiece in saddle groove		mm	630
Valid length of gap		mm	240
Through hole diameter		mm	82
Bore hole		mm	90/1:2
Spindle rotation speed		rpm	9-1600
Max transverse travel of tool rest		mm	320
Max travel of small tool rest		mm	145
Distance between spindle center line and tool support surface		mm	about 28
Tool cross sectional dimension (H*W)		mm	25*25
Longitudinal feed		mm/r	0.028-6.43
Transverse feed		mm/r	0.028-6.43
Taper of center sleeve inner hole		mm	MT5
Max movement of center sleeve		mm	150
Max transverse movement		mm	±15
Thread	Inch system		72-1/8t/in
	Metric system		0.5-224
	Module		0.5-112
	Diameter pitch		56-1/4DP
Motor specification			7.5kw 1500rpm
Belt specification			B-2260
Dimension (L*W*H)	1000mm	mm	2625*1043*1275
	1500mm	mm	3125*1043*1275
	2000mm	mm	3625*1043*1275
	3000mm	mm	4800*1043*1275
	3500mm	mm

Shenzhen Joint Machinery Co., Ltd. stands as a beacon of excellence in the manufacture and export of CNC lathe machines, CNC deep hole drilling machines, and Swiss-type automatic lathes, as well as milling and grinding machines. Our unwavering commitment to superior quality and unparalleled service ensures our global clientele receives only the best. Adhering to stringent quality control measures, we maintain the highest industry standards, utilizing core technologies from Taiwan and Germany alongside cutting-edge production equipment and processes. This guarantees our products' superior quality and reliability. Celebrated for their exceptional precision, stability, and reliability, our machines meet the diverse and rigorous demands of modern machining. Our international market reach encompasses Asia, Europe, South America, North America, and beyond, captivating customers worldwide and earning widespread acclaim. We forge enduring partnerships with clients across various countries and regions, collaboratively generating substantial business value.

---
