Basic Info.
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Computerized
Computerized
Certification
CE, ISO9001:2008
Transport Package
Film Packing
Specification
6.3*1.75*2.37
Production Capacity
500sets Per Year
Product Description
Ningbo Union Power Machinery Co., Ltd.
Located near Shanghai in Ningbo, our factory specializes in manufacturing injection molding machines, injection molds, and auxiliary equipment. Our injection molding machines range from 50 tons to 3000 tons with a tensile resistance of up to 40000 g.
Machine Family:
A) Standard Injection Molding Machine
B) PVC Injection Molding Machine
C) PET Injection Molding Machine
D) Two-Color Ejector
E) Fully Hydraulic Injection Molding
F) All-Electric Injection Molding Machine
G) China Servo Injection Molding Machine
Key Parameters:
A. Modulus of Capacitance: Guide pillar specifications including position, size, and closure thickness.
B. Nozzle Parameters: Nozzle details such as spherical diameter, aperture, and extension length.
C. Code Mold Parameters: Mold hole and slot size.
D. Ejection Mechanism: Ejection point position, ejector rod diameter, force, and stroke.
E. Mold Opening: Opening stroke and maximum distance.

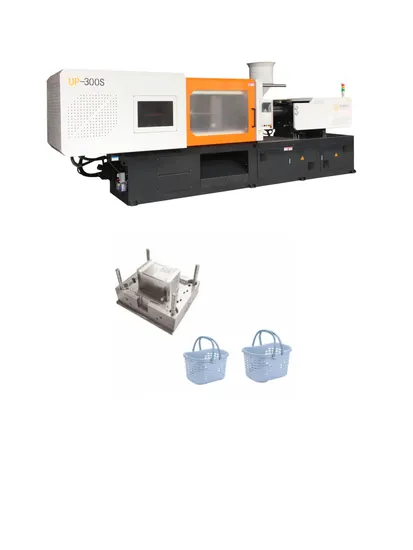

| Technical Parameters | Model UP-300T |
| Injection Unit | A | B | C |
| Screw diameter (mm) | 60 | 65 | 70 |
| Shot Volume (cm3) | 806 | 946 | 1096 |
| Injection weight (g) | 725 | 851 | 987 |
| injection pressure (Mpa) | 170 | 145 | 107 |
| Screw speed (rmp) | 220 |
| Clamping Unit | |
| Clamping force (KN) | 3000 |
| Open stroke (mm) | 600 |
| Max Mold height (mm) | 620 |
| Min Mold height (mm) | 200 |
| Space between tie bars(mm) | 620*620 |
| Ejector force (KN) | 70 |
| Ejector stroke (mm) | 150 |
| Others | |
| Pump pressure (Mpa) | 16 |
| Motor/driving power (KW) | 30(29) |
| Heating power (KW) | 18.5 |
| Machine dimension (M) | 6.3*1.75*2.37 |
| Machine weight (T) | 9.3 |
| Oiltank cubage (L) | 400 |
>>
