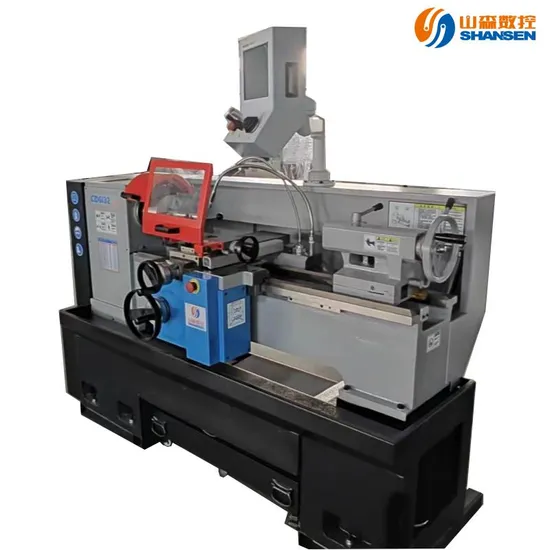

Precision End Face Turning and Threading Electronic Lathe with 750mm Workpiece Length

Product Description

Product model
https://cdfcd11d982fc597.en.made-in-china.com/product-list-1.html
Product model:CD6132-750
Product Size

ltems	Unit	MOdel CD6132-750
Swing over bed	mm	330
Swing over carriage	mm	160
Center height	mm	175
Max. workpiece length	mm	750
Max. processing length	mm	750
3-jaw chuck diameter	mm	160
Speed ranges	rpm	20-2600
Spindle bore	mm	43
Spindle taper	mm	MT5
Spindle nose		C5
Top slide travel	mm	65
Cross travel (X axis)	mm	190
Longitudinal travel (Zaxis)	mm	750
Number of stations		4
Tool shank size	mm	16*16
Quill travel	mm	130
Quill diameter	mm	60
Quill taper		MT4

Product Description
electronic lathe is our company's electronic lathe series of products in the two specifications, is the company's independent research and development, with independent intellectual property rights of new products, is a substitute for ordinary lathe. Through mechanical and electrical coordination can be extremely convenient to complete the inside and outside cylindrical surface, conical surface, end face and all kinds of thread processing, suitable for machining, tool manufacturing, equipment maintenance and batch production of processing workshop use.

Features of the Electric Lathe
Save 10% cost than ordinary lathe.
It takes 3 years to learn to operate ordinary lathe, but it takes only 3 minutes to learn electric lathe.

Compared with the ordinary lathe, the performance of the electric lathe has been greatly improved, capable of turning threads of any pitch, and realizing cylindrical cycle cutting, thread cycle machining, fixed-length machining and so on.
Pitch feed, processing length, cutting speed, spindle speed, etc. can be set arbitrarily, without exchanging gears.
Detailed Photos
company
Certifications
FAQ
1.What type of company are you?
We are a manufacturer.
2.What can you buy from us?
Electronic Lathe, Terminal Block Module, Relay Module, Cable, LED Light, Sensor, Control Power Box Body, Push Button, Switchand Other Industrial Automation Control Products.
Please contact us if you do not find the product you want.
3.How about the quality of the products?
We can provide one year warranty for you and we have the certification of CE etc.,

---
