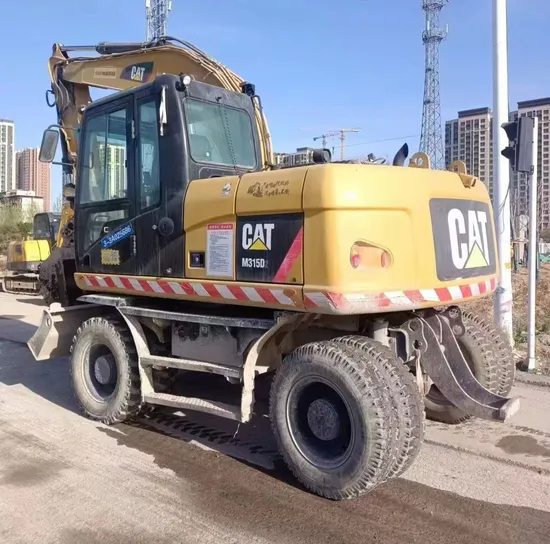

Used C-at Heavy Equipment Excavator, Original 15ton C-At315W

Product Description

Product Description
Caterpillar M315 Wheeled Excavator Basic Parameters Operating Weight: 14.47t Standard Tires: 10.00 - 20 Bucket Capacity: 0.63m³ Boom: VA Outrigger Stabilizer: 22/4 - fold Dimension Parameters Transport Length: 8.14m Transport Width: 2.55m Transport Height: 3.3m Maximum Horizontal Reach: 8.7m Digging Depth: 5.46m Arm Length: 2.5m Outer Turning Radius: 6.3m Performance Parameters Travel Speed: 30km/h Bucket Digging Force: 103kN Bucket Width: 1.1m Engine Parameters Engine Manufacturer: Caterpillar Engine Model: C4.4 Engine Power: 110kW Displacement: 4.4L Maximum Torque: 710/1400N·m Number of Cylinders: 4 Bore × Stroke: 105×127mm Emission Standard: V Caterpillar M315 GC Wheeled Excavator Basic Parameters Operating Weight: 13990kg Bucket Capacity: 0.65 - 0.85m³ Engine Model: Cat C4.4 Engine Parameters Engine Power - ISO 14396: 110kW Net Power - ISO 9249: 104kW Displacement: 4.4L Bore: 105mm Stroke: 127mm Hydraulic and Oil Parameters Hydraulic Tank: 98L Hydraulic System including Tank: 230L Fuel Tank Total Capacity: 250L Cooling System: 23L Engine Oil: 15L Dimension Parameters Boom: 4.4m Arm: 2.2m Shipping Length: 7920mm Support Point: 2414mm Tail Swing Radius: 2190mm Counterweight Clearance: 1264mm Upper Frame Width: 2490mm Height in Travel Position: 3675mm Working Range Parameters Maximum Excavation Height: 8254 - 8392mm Maximum Loading Height: 5892 - 5722mm Maximum Digging Depth: 4624 - 4795mm Maximum Vertical Wall Digging Depth: 3777 - 2962mm Maximum Reach: 7941 - 8112mm Maximum Reach - Ground: 7739 - 7914mm Minimum Loading Height: 2394 - 2223mm Minimum Front Swing Radius: 2600mm Performance Parameters Maximum Swing Speed: 11.5rpm Maximum Swing Torque: 34kN Bucket Digging Force: 73 - 69kN/ISO Arm Force: 98 - 83kN/ISO

---
