Spindle Less Plywood Veneer Production Line Included Log Debarker and Wood Veneer Peeling Machine

Product Description

Spindle less Veneer Production Line included Log debarker and Wood Veneer Peeling Machine

About us:
Hello, we are China professional factory who specialize in manufacturing the full line of veneer machine and plywood machine with many years production experience.
Until now, we can offer below machine for you: veneer peeling line(wood debarker, veneer peeling machine, log conveyor, and vacuum veneer stacker), veneer dryer( veneer press dryer, Roller dryer, and Wire dryer), plywood glue machine, Cold press machine, Hot press machine, Plywood cutting trimming machine, Sanding machine, Lift table, Wood waste crusher, Boiler.
Therefore if you want to start produce wood veneer or plywood whatever furniture plywood, construction plywood, packing plywood or other types, we all can offer the total machine for you.

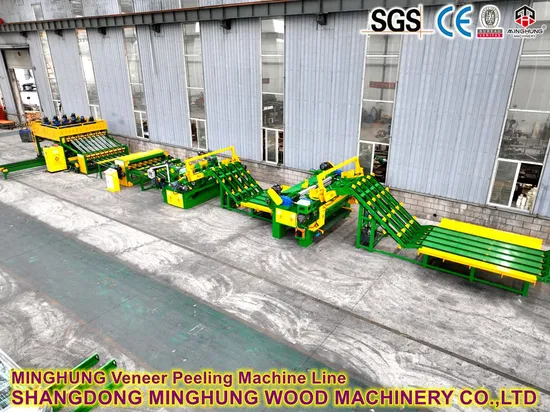

Veneer Peeling Line
For the whole peeling line, it includes:
1. Wood debarker. (for removing and rounding wood log)
2. Veneer peeling machine. (for peeling wood into pieces of wood veneer)
3. Log conveyor. (for convey log into machine)
4. Vacuum veneer stacker. (for automatic sorting wood veneer)
With this peeling line, you can produce wood veneer through process material-log.
Whatever you peel softwood or hardwood like beech, birch and others, please do not worry, this type of our veneer peeling line, they are high specification and strong type, machine can easy to peel hardwood and keep stable, and produce high accurate wood veneer.
Therefore, whatever you will sell wood veneer to your customers, or you will produce wooden furniture or plywood by these wood veneer, it will be big helpful for your business.
High Specification 8feet Veneer Production Line Specification:
8feet Wood Debarker:
Mode: MH-WD8A
Knife length: 2700mm
Max log length: 2600mm
Max log diameter: 700mm
Speed: 70m/min
Power: 51.5kw
Weight: 8ton
Function: for removing and shredding wood bark, and rounding wood.

8feet Veneer Peeling Machine
Mode: MH-VPM8A
Knife length: 2700mm
Max log length: 2600mm
Max log diameter: 600mm
Speed: 48m/min
Thickness: 0.5-3.5mm
Weight: 11ton
Function: Producing pieces of wood papel through rotate peel wood log.
Log loader:
Model: MH-LT8
Quantity: 2pcs
With 4 rows chains
Function: for automatic convey log into machine

Vacuum Veneer Stacker
Model: MH-VS2600A
Veneer size: 2600*600-1300mm (L*W)
Thickness: ≤3.5mm
Weight: 4.5ton
Size: 6500*3200*2750mm
Function: Automatic sorting wood veneer after peeled by veneer peelin g machine, save two labor cost, and improve work efficiency.
Magnetic Knife Sharpener
Model: MH-KG
Max grinding knife length: 8feet
Power: 6kw
Function: for grinding knife edge when it becomes blunt, after grinded, the knife edge will become sharp again. Knife sharp is also important for wood veneer quality.

Name	8feet veneer peeling machine
Function	Veneer production
Max wood length	2600mm
Max wood diameter	600mm
Thickness range	0.5-3.5mm
Speed	48m/min
Suitable wood	softwood and hardwood
Weight	12000kgs

Until now, we have exported our veneer production line to many different countries, and get good feedback, many clients choose to buy from us again and again, and they are happy to introduce our machine to other their friends.
I think that becuase that our factory insist make our veneer machine good quality, insist choose good material and spare parts and accessories, insist focus on each production step to make sure our veneer machine are good and strong, so we can get our clients approval.
We will continue to improve our veneer machine characters, materials, make it better and better, help more clients to create much value.
Share some loading pictures of veneer machine with you:
MINGHUNG veneer machine at clients factory:
Until now, our clients all satisfied of our veneer production line. Many of them peel hardwood beech and others wood, our peeling machine can help them make good quality veneers.
Related veneer machine:
For the veneers, veneer dryer is also necessary, to drying abundant moisture of original veneers. Veneer dryer machine mainly includes Roller type veneer dryer, Mesh type veneer dryer, and Press dryer (includes squre tube veneer press dryer and Solid hot plates veneer press dryer).
According to your demands, we can offer the suitable veneer dryer machine for you.
Wait your message, you can send message through this, and leave your phone and email, we will contact you quickly.
Best wishes
SHANDONG MINGHUNG WOOD MACHINERY CO.,LTD

---
