PE PVC WPC Wood Plastic Profile Flooring Window Door Frame Decking Floor Tile Bead Profile Making Extrusion Extruder Machine

Product Description

Product Description

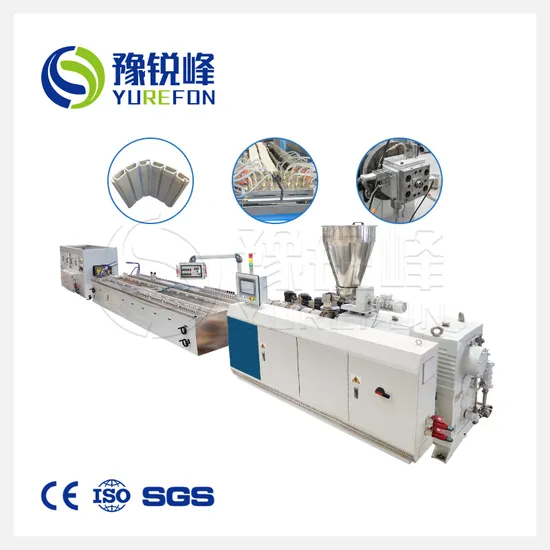

WPC Wood Plastic Profile Flooring Window Door Frame Furniture Production line
Brief Introduction :
PP/PE WPC Wood Plastic Composite Extrusion Production Line consists of twin-screw extruder, mold, stereotypes, traction, cutting machine and loading table. After the replacement of mold, wood-plastic extruder also can used for PVC doors and windows profiles production.
Wood-plastic composite material that produced by wood-plastic equipment production line is a new type of green material. It is mainly to mix plastic raw materials (recycled PVC, PP, PE powder) and plant fiber (30-60% straw, wood flour, rice husk) together with a certain proportion, and then forming from processing. It has advantages of both wood and plastic, which is similar to the appearance of wood and has secondary processing capacity. It has the advantages of low moisture absorption, corrosion resistance and pest resistance, less maintenance. It is an excellent alternative to replace outdoor applications of wood, plastic or metal materials. In addition, it is mainly used in the manufacture of building panels, decorative panels, railings, pavement, steps, outdoor table siding and chairs, arbor, tree bed etc.
Wood Plastic Composite Extrusion Production Line :
Rising energy costs and a growing ecological awareness are leading to consisting develop-ment of the complete extruder design .
This development affects all energy relevant components and elements of the extruder and leads to a heightened overall efficiency of the unit .
The relevant components including followings:
1. Mortor and drive section
2. Barrel heating resp cooling
3. Screw temperature control
4. Optimizing the processing unit.
Product Parameters
Parameters of Wood Plastic Composite Extrusion Production Line:

Model	SJSZ 51/105	SJSZ 65/132	SJSZ 80/156	SJSZ 92/188
Screw Diameter(mm)	51mm/105mm	65mm/132mm	80mm/156mm	92mm/188mm
Output(Kg/h)	80-120	160-200	250-350	400-500
Main Drive Power(kw)	18.5	37	55	110
Heating Area(Kw)	3 zones, 18Kw	4 zones, 20Kw	5 zones, 38Kw	6 zones, 54Kw

Work Flow and Detailed Information of Wood WPC Plastic Composite Profile Production line:

Feeder	•Feeding material into the extruder;
Extruder	•World famous brand electrical component: Siemens, ABB etc. • High torque gearbox with adopts NSK bearing; • Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface.
Die head	• 3Cr13/3Cr17 material • Complete set include extrusion die head, calibrator and cooling tank • Adopt to single, co-extrusion, foam imitation marble profile
Calibration table	• Include full set of vacuum and water pu • Length: 6000mm • Independent operation panel for easy operation
Haul off machine	• Upper/lower caterpillal driven separately and speed control by inverter • Fast change type pads for easy operation • Install plate is adopts aluminum material
Cutter	• Lifting saw cutter with adopts double station dust collection system •Synchronous driving by air cylinder or servo motor control
Stacker	• Stainless steel304 as touching material • Discharge driving by air cylinder
Hot stamping machine	• Decorative pattern and film protection of product surface

Detailed Photos
Company Profile
If you want to know more about the machine, pls contact us.

---
