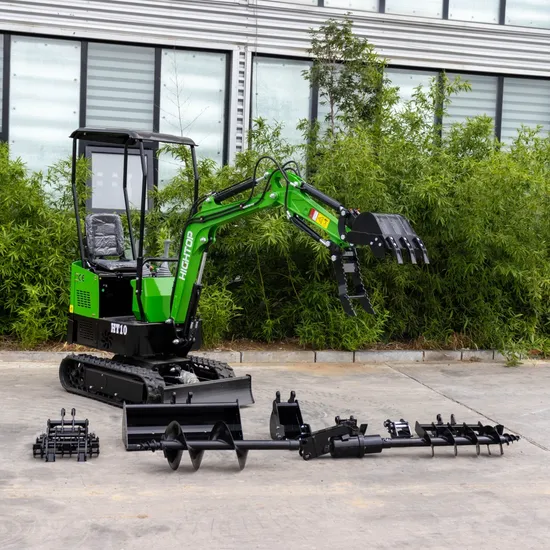

1000kgs Small Digger Mini Bagger Towable Backhoe Mini Excavator with Quick Hitch

Product Description

1000kgs Small Digger Mini Bagger Towable Backhoe Mini excavator with quick hitch 1.Main Demensions of 1000kgs Small Digger Mini Bagger Towable Backhoe Mini excavator with quick hitch
Model: HT10
Standard bucket width: 380mm
Track width: 180mmTrack height : 1090mmPlatform ground clearance: 380mmPlatform back turning radius : 784mmChassis width: 896mmMaximum excavation depth: 1650mmMaximum excavation height: 1375mmMaximum upgarde height of bulldozer: 325mmMaximum digging depth of bulldozer: 255mmOperating weight: 900 kgRated power: 8.6kw/3600r/min
Cheap price Mini Excavator with safety shed of the new bucket digger equipment is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain, it's reliable and of user-friendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking.
One set comes with one standard digging bucket 380mm and canopy.
Package: One set packing by Wooden case, 20' Containter can hold 7 sets, 40' Containter can hold 12 sets.
Optional Accessory : Narrow bucket(200mm width), Plain bucket (500mm width), Ripper, Grabber, Rake, Auger and etc.
Specifications:

Model	HT10
Operate Weight	1000KG
Digging bucket capacity	0.025cbm/120kg
Bucket width	380mm
Engine	CHANGCHAI (KD192),Single cylinder, fan cool
Optional engine	BRIGGS & STRATTON/LCT EPA, Euro 5
Rated power	8.2kw/3600r/min
Main pump	CBK-F6.8
Displacement	6.8ml/r
Swing motor	SJ-TECH (MP-1-160)
Traveling motor	KERSEN(OMS-2450)
Travel speed	1.2km/h
Overall dimension( LxWxH)	2590x800x1250 mm
Max. Digging depth	1200mm
Max. Vertical digging depth	1375mm
Max. Digging height	2350mm
Max. Dumping height	1600mm
Max. Digging radius on ground	2450mm
Min. Rotation radius	1100mm
Max. Upgrade height of bulldozer blade	345mm
Max. Digging depth of bulldozer blade	255mm

Feasure:
1. Easy to operate
Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.
2. BIG PERFORMANCE IN A COMPACT DESIGN
Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.
3. SAFETY ON THE JOB SITE
Your safety is our top priority. The mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we've built into the machine.
4. LOWER OPERATING COSTS
Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the mini excavator was designed with reducing your operating costs in mind.
Details image:
