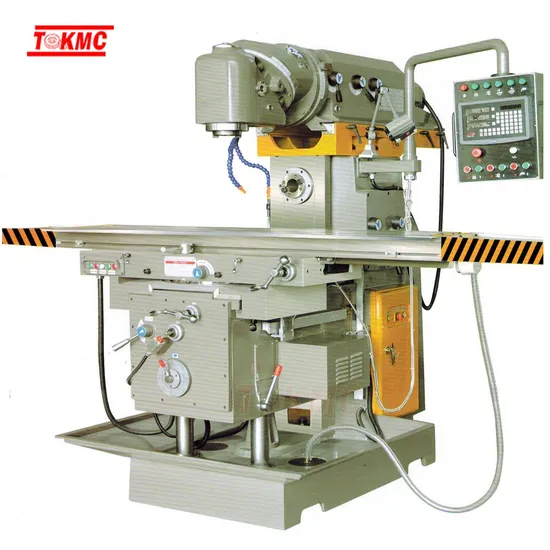

Heavy Duty Milling Machine Universal Knee-Type Tum1490A

US$11,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
TUM1490A
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Travel (mm)
2000X360mm
Spindle Speeds
50-1520 Rpm
Voltage
380V 415V 220V 600V
Motor
5.5 Kw
Three Axes Travel
Auto Gear Transmission
Product Name
Vertical Knee-Type Milling Machine
Face Milling Cutter
320mm
Milling Head
360 Degree
Spindle Taper
ISO50
Digital Readout Three Axes
Sino Brand
Function
Milling Machine
Column Travel
Forward and Back
Worktable Swivel
45 Degree
Z Axis Travel
500mm
T-Slot
3-18-80 mm
Transport Package
2300X2700X2300mm
Specification
4100 kgs
Trademark
tokmc
Origin
Shandong
HS Code
84595900
Production Capacity
100 Sets/Year

Product Description

China suppliers heavy duty knee-type swivel head chinese milling machine TUM1490A
Model TUM1490A
Spindle Taper 7:24 ISO 50 V /H
Distance from Spindle to Column surface 200-1000mm vertical milling head
Distance from Spindle Nose to Table Surface 210-700mm vertical milling head
Max.Distance from Spindle Center to Table Surface(H) 0~500 mm horizontal
Distance from Spindle Center to Table Surface 280-1160mm vertical head
Spindle Speed Range 50-1520 rpm V
60-1850 r.p.m H
Table Size 2000×360mm
Worktable Swivel Angle ±45°
Table Travel 1620mm
Cross 400mm
Vertical 500mm
X,Y axis Feeding 22.4-560mm/min 8steps
Z axis Feeding 11.2-280mm/min 8steps
T-slots of Table 3
Width 18mm
Distance 80mm
Main Motor 5.5kw/7.5 kw
Feeding Motor 1.1kw
Coolant Pump Motor 40w
Overall Dimensions 2300×2700×2300mm
Net Weight 4100kg
